Armature Rotor Electrostatic Powder Coating Machine WIND-APC-L For R&D Laboratory Use

For small amont armature powder coating, laboratory use WIND-APC-L

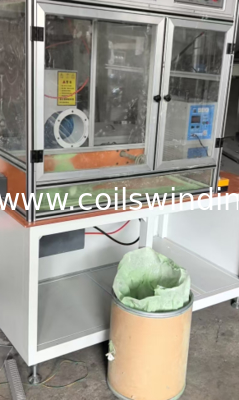

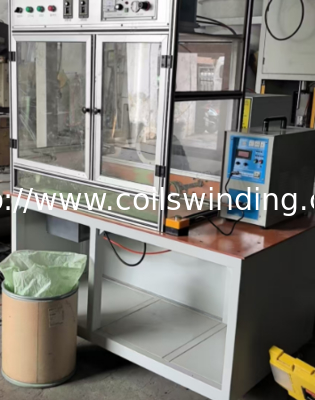

Armature rotor electrostatic epoxy resin powder coating machine WIND-APC-L

for kinds of armature prototype laboratory experiment use

The machine is suitable for armature rotors within

OD 60mm, stack height 80mm, shaft size 12mm

Any electrostatic epoxy resin which can be used for electrostatic powder not fluid bed is suitable,

Machine don’t have special requirement for electrostatic epoxy resin

Operation process

https://www.youtube.com/watch?v=L7G5w9KhzjI

https://vimeo.com/105955597

1. Operator assemble fixture for armature and load it on to driving connection rod

2. Press the Start button, armature begin to rotate,

Electrostatic open and epoxy resin powder become fluid at same time ,

The resin mist begin to fly to armature stack and stick to surface

3. After coating, electrostatic fluidization stop,

The scraping device stretch out and begin to scrap and remove the resin on armature OD

4. After powder coating, fetch out the armature and put the armature in oven

(Oven is not included in quotation ,

Usually 180～200℃ ,30minutes, per powder characteristic)

Configuration of the electrostatic epoxy resin machine WIND-APC-L

1.Electrostatic high voltage generator 1pc

2.Fluid container (200mm*200mm) 1pc

3. Resign coating container 1pc

4. Motor for speed adjustment 1set

5.Automatic scraping resin device 1set

6.Resin recycling device 1set

Production ability 15~30pcs/hour (According to different armatures)

Dimension :L1200*W710*H1618mm(Space required L1500*W1500mm*H2000mm)

Gross Weight:420KGS

Production lead time: 30days
