Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting

Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting
Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting

Large Image :  Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting Get Best Price

Product Details:
Place of Origin: Chinese plant motor manufacturing Slot insulation
Brand Name: Wind Automation
Model Number: WIND-200-WF electric material slot closure forming cuffing creasing and cutting
Payment & Shipping Terms:
Delivery Time: This machine is equipped with a double row mould for paper cutting, stepper motor for controlling pa
Detailed Product Description

WIND-200-WF electric material slot closure forming cuffing creasing and cutting machine,

form and cut the insulation paper wedge for induction motor cell insulation

such as pump,ceiling fan,compressor,hood motors.



Parameter:

Feeding length 10~200mm

Cutting thickness < 0.35mm

(Custom made machine WIND-300-WF can handle thickness above 0.35mm material)

Weight: around 150KGS

Dimension: 500*900*1200mm



Video:

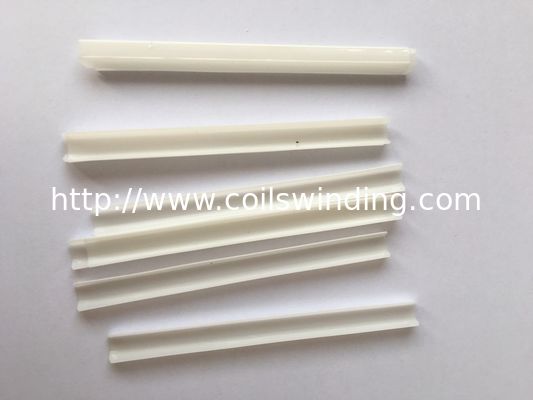

Form and cut the insulation paper wedge



Question and Answer:



1pc top closure wedge forming machine WIND-200-WFvideo link



You may also interest in slot insulation machine for max 300mm

Do you need the slot liner insulation machine WIND-150-IF, too?

https://youtu.be/8hlU1ovZ2yw

If so, please inform your Max. stator stack height for slot insulation machine





Question: our topsticks (or wedge sample) can be 0.020”. Please advise if your automatic wedge forming machine can form this wedge or not.

Answer:in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,

The wedge should be heated on machine before formed,

Your wedge is NMN with 0.51mm and too hard to be formed, sorry, the forming machine WIND-200-WF can't meet your requirment



Custom made machine WIND-300-WF Wedeg forming can handle thickness above 0.35mm material



Photo:

Slot Cell Wedge Electric Material Slot Closure Forming Cuffing Creasing And Cutting 0







You may also interest in Insulation paper cuffing creasing and cutting machine WIND-150-IF
