Stator Powder Coating Hot Dip Fluid Bed Coating WIND-HDP

China Stator Powder Coating Hot Dip Fluid Bed Coating WIND-HDP supplier

Large Image :  Stator Powder Coating Hot Dip Fluid Bed Coating WIND-HDP

Product Details:

Place of Origin: fluid powder coating not electrostatic
Brand Name: Stator Insulation
Certification: Power tool magneto insulation
Model Number: WIND-HDP

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Supply Ability: 50pcs per year
Detailed Product Description

Stator powder coating machine Coated stator, powder coating video https://vimeo.com/152586550

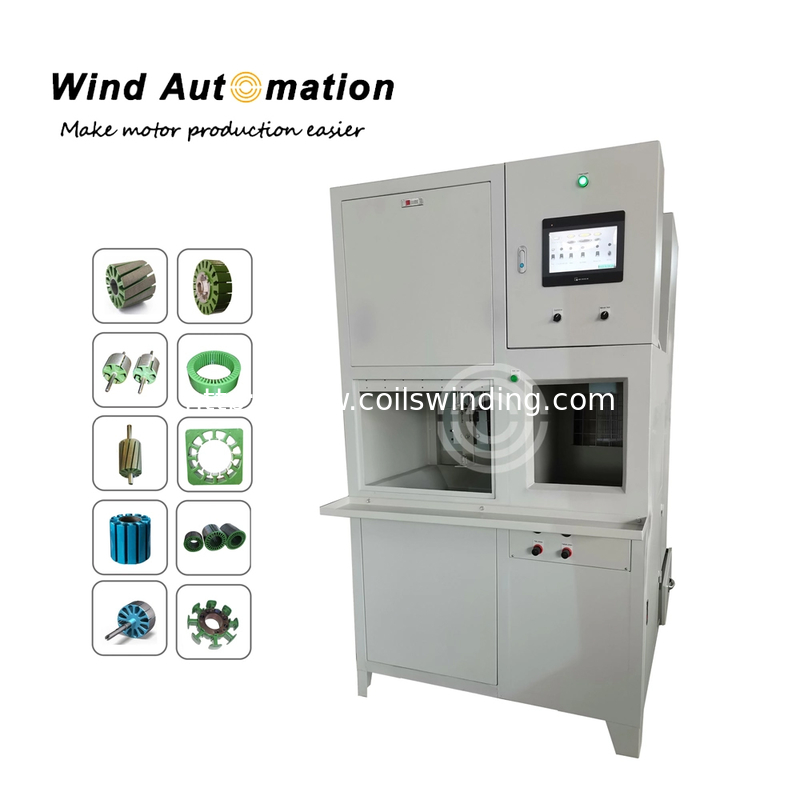

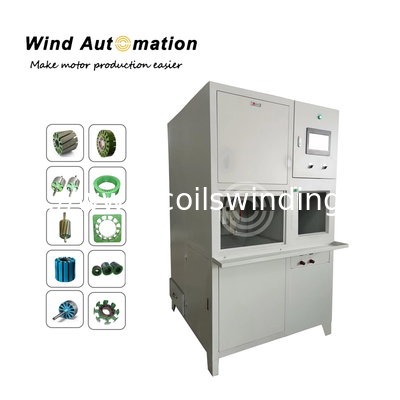

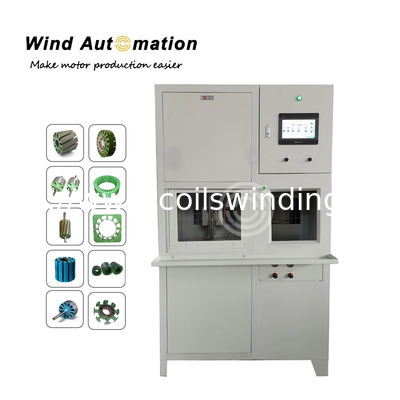

Stator Powder Coating Hot Dip Fluid Bed Coating WIND-HDP



I. Design and production reference

NO

Item

Parmater

Remark

1

Stator

Motor stator



2

Stator material

Silicon steel stack



3

Stator dimension

OD Φ100 mm

Stack thickness 25mm Max



4

Stator weight







5



Shift output



60~120 pcs/h

Depend on powder’s character



II. Working process

1. Fix the stator (work piece) in the fixture, then put it inside the inductorium,

2. Power on the machine, then the induction heater automatically begin

 working, the heat time could be set, when set time is reach heater

automatically stop, Normally the heater time is 10s

3. Fetch out the fixture,then dip both side in the power coating station,

the stator is hot, and the fixture is in normal temperature and won’t burn you,

4. Dip the fixture in the power coating station both side, the dipping time is

 depened on stator stack thickness and powder’s character,

For example,normally one side is 3s, then the other side 2s

5. After dipping, disassemble the fixture clean the fixture using a airgun to

 remove the remain power when necessary

6. Collect and put the stators into oven( the machine didn’t have a oven with it),

  the oven temperature need reach to 180~200℃ (depended on powder’s

 character), keep that temperature for more than 30 minutes

1. Machine is composed of heating,powder coating,powder cleaner and

powder recycle system with nice appearance and reasonable configuration,

the machine frame is made of 1.2mm A3 steel plate,

2. High frequency indution heater have the advantage of fast heating,

low energy, safety and reliability

3. Air blowing ensure well done in cleaning fixtures

4. Cooling on high frequency induction heater is freezing style water cooler

tank, it is well cooling



IV Machine configuration

Machine dimension  L2100×W1720×H2100 mm

1. 40KW high frequency induction heater 1PC

With Φ120mm inductorium 1PC

2. Cooling tank 1PC

With size L1000×W1000×H1000mm

3. 0.37KW Cooling water pump

4. Powder coating chamber  1SET

5. Powder recycle system (on back side of powder coating chamber) 1PC



V Power composition

Power : 12KW  380V±10%,50HZ

Compressed air : 0.3 m³/min 0.6Mpa



Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
