Stepping motor stator needle winding machine with 2 slots winding each time WIND-1B-TSM
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| 2 Nozzles: | 2slots Wind Each Time For 8poles BLDC Stator | Stator Poles: | 8poles Can Be Wound 4times |
|---|---|---|---|
| Stator Stack Height: | 7mm To 100mm Stator Stack Length | Automatic Stator Needle Winding: | No Need To Lock Stator By Hand, Automatic Positioning |
Stepper motor needle winding machine WIND-1B-TSM can wind 2 slots per time, check below video for 8poles stator winder demo
| Winding machine application | BLDC Stator, stepper motor stator mutipoles include 8poles |
| Stator Winding feature | Suitable for big stack height below 100mm, and 8poles stator |
| Winder manufacturer required material |
1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing
|
8poles stator needle winding machine tooling

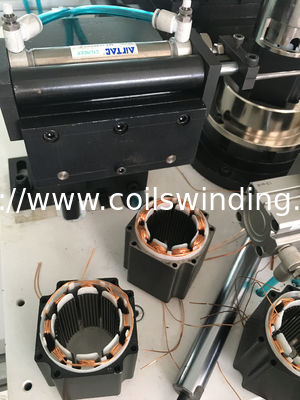

Stepping motor stator needle winding with 2 slots winding each time
8poles BLDC stator winding machine
Automatic BLDC stator needle winding machine
Winding machine wire frame weight for wire placement
Parameter:
Wire diameter: 0.08~0.8mm
Stator ID:15mm~65mm
Stack height:7-100mm
Turns No.0-9999
Operation option: stepping/Auto
Stator poles: 6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles (Custom made)
Air pressure:0.5~0.7MPa
Power:1KW, AC220V 50/60Hz
Weight: about 450kgs Dimension: 1600(L)x1000(W)x1500(H)mm
Configuration:
Mitsubishi PLC
Embedded human - machine interface touch screen
High power stepper motor
Airtac cylinder
Blow materials are needed for machine manufacturing and commissioning,
1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing
|
Stator winding machine characteristics type 1: Plz, indicate the model №__WIND-1B-TSM________ |
Confirmation: yes/no. If NO, plz indicate your parameter |
||
| 1 | Stator tube diameter | 70 mm | YES |
| 2 | Stator tube width | 15 mm | YES |
| 3 | Number of axies | 4 minimum | NO |
| 4 | Line coordinates tolerance | ±0,01 mm | YES |
| 5 | Angular coordinate tolerance | ±0,5 angular minute | YES |
| 6 | Shaft pitch | minimum 100 mm | YES |
| 7 | Winding speed | 10 – 60 winds prm | YES,350~400RPM |
| 8 | Stator max. Outer diameter | 63 mm | YES |
| 9 | Stator Inner diameter | no limits | >15mm |
| 10 | Maximum length of the stator with the front parts | 80 mm minimum | YES |
| 11 | Minimum length of the stator with the front parts | 15 mm | YES |
| 12 | Stator slots | no limits | NO,6,8,9,10,12,14,18slots |
| 13 | Minimum slot width | 0,8 mm | YES |
| 14 | Working wire diameter | 0,063 – 0,315 mm (twin) | YES |
| 15 | Number of spindles | 2 | No, 2 nozzles, 1 spindle |
| 16 | Number of tensioners | 2 | YES |
| 17 | Control mode | Laptop with Software | NO,PLC and HMI |
| 18 | Power supply | 3~380 V (±15%), 50 Hz, 2 kW | NO,1~220V,50Hz,1.5KW |
