Automatical Pump motor stator coil winding coil making machine with servo system

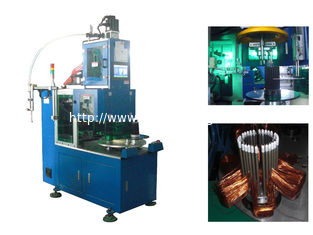

: Large Image : Automatical Pump motor stator coil winding coil making machine with servo system

Product Details:

Place of Origin:	Pump motor making machine in China
Brand Name:	Wind Automation
Model Number:	Automatic AC motor stator winding machine

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	servo motor system
Packaging Details:	Polywood case
Delivery Time:	45 working days
Payment Terms:	T/T, L/C,

Contact Now

Detailed Product Description

Advantage:

Produce coil for stator and insert to the transfer former automatically

2 stations, 1 winding head, fully servo system,

save 5% copper wire comparing to CNC winding method,

Specification:
Wire diameter:0.2~1.2mm
Min stator ID:40mm
Max stator OD:175mm
Core length:40-130mm
Power:380V, 50/60KW
Weight: about 1100kgs
Dimensions: 1900 (L)x850 (W)x3200(H)mm

Video:

For big induction motor stator winding coils making machine demo

Contact:Emily

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
