Stator Winding Binding Machine Lace The Stator End Coils Side By Side

Large Image : Stator Winding Binding Machine Lace The Stator End Coils Side By Side Get Best Price

Product Details:

Place of Origin:	Chinese motor manufacturing equipment
Brand Name:	Wind Automation
Model Number:	stator coil lacing

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	In USD
Packaging Details:	Polywood case
Delivery Time:	45 working days
Payment Terms:	T/T, L/C,
Supply Ability:	500 sets per year

Contact Now

Detailed Product Description

Stator lacing machines to manufacture electric motors, to lace the stator end coils, one side by side

Stator coils lacing is the process of tightly securing the field coil ends of an electric motor stator with a stitched cord,

motor stator braiding. Lacing is typically used on long-life-expectancy or high-efficiency motors such as some induction motor where the cost of failure is high. Generally, low-cost “throwaway” motors are not laced.

https://youtu.be/fdpq_xKo7uQ

Parameter:

Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm

Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg

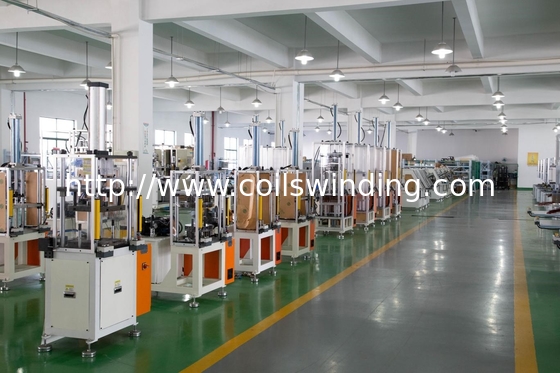

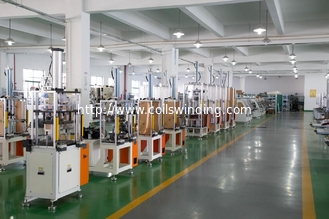

Engineer show the coils lacing process to customer in our plant

You may also interest in Double station stator coils lacing with cord lacing knob
