Machine install wedge and coils to Stator concentric Winding and insertion machine China
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Technical parameter:
Thickness of stator lamination: 8mm-125mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 380V/ 50Hz
Air pressure: 0.5-0.8MPa
Power: 3.5KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1800mm × 650mm × 1700 mm
Weight: ≈ 1000kg
Working video:https://vimeo.com/108425117
Install and wedge coils forinduction motor,concentric Winding insertion machine
Suitable for induction motor which is with concentric winding method,

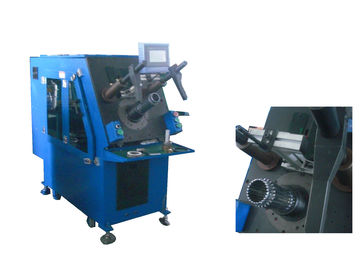

picture showed the machines in our plant under production
Contact:Emily
Email: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com
