E-bike stator winding machine Brushless hub motor stator winding equipment China supplier

China E-bike stator winding machine Brushless hub motor stator winding equipment China supplier supplier
E-bike stator winding machine Brushless hub motor stator winding equipment China supplier supplier E-bike stator winding machine Brushless hub motor stator winding equipment China supplier supplier

Large Image :  E-bike stator winding machine Brushless hub motor stator winding equipment China supplier

Product Details:

Place of Origin: Chinese machine for producing electric bike
Brand Name: Wind Automation
Certification: Custom made machine for producing Brushless hub motor

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Detailed Product Description

Advantage:

Could save 6% to 15% copper wire, around 8 mintues per piece

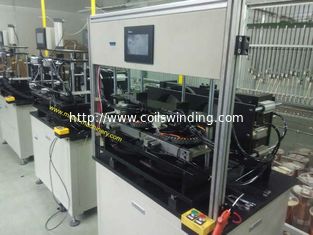

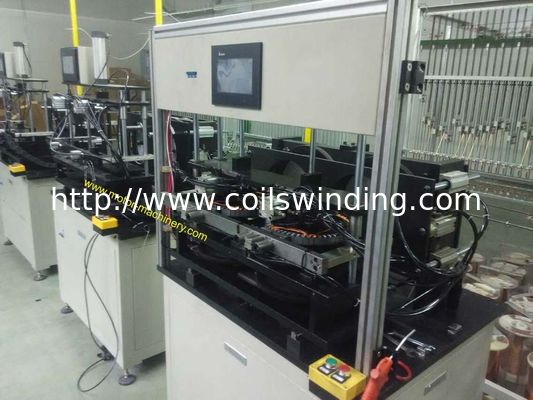

Electric hub motor stator winding  (Video show the process of BLDC E-bile winding) produce wheel motor stator with  muti wire  coils winding, below is the winding machine under production in our Plant

E-bike stator winding machine Brushless hub motor stator winding equipment China supplier



Parameter:

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)

Composition:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER

E-bike stator winding machine Brushless hub motor stator winding equipment China supplier



One local customer purchase 1pc at first, then after smooth produce the wheel motor for some time,

they put order for 12pcs again, this is a video in customer's plant https://vimeo.com/123941149



Contact:Emily

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
