Cantilever Single Stranding Machine Litz Wire Winding Machine WIND-650P-LW

Name: Cantilever Single Stranding Machine Litz Wire Winding Machine WIND-650P-LW
Brand: Wind Automation
SKU: WIND-LW-1250
Rating: 4.9 (192 reviews)

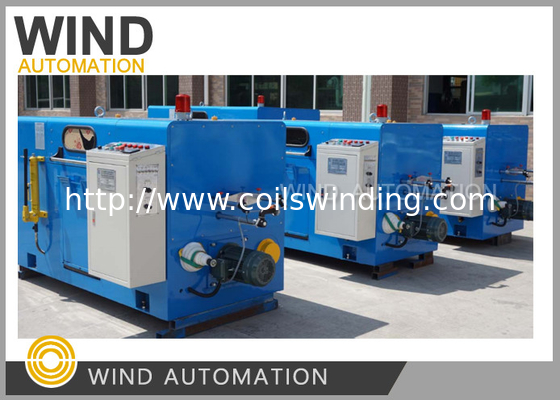

Large Image : Cantilever Single Stranding Machine Litz Wire Winding Machine WIND-650P-LW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Wind Automation
Model Number:	WIND-LW-1250

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Delivery Time:	45 workdays
Payment Terms:	T/T

Contact Now

Detailed Product Description

Condition:	New	Color:	Apple Green
Dimensions:	1500250250mm

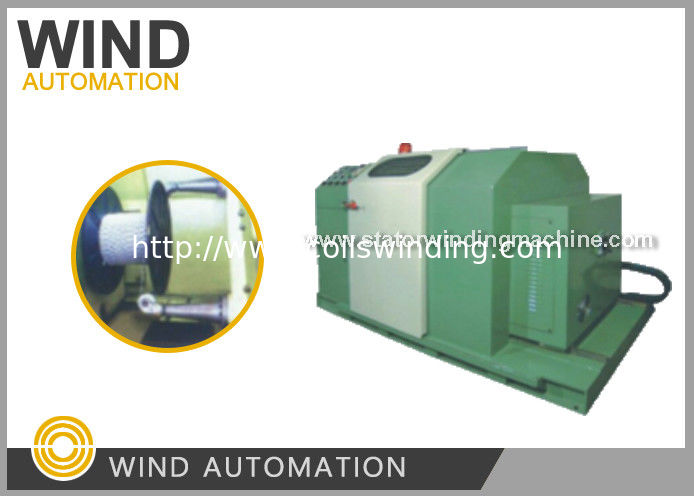

Cantilever Single stranding machine litz wire winding machine

The machine is designed and manufactured by Taiwan technology improvement.

Equipment uses:

PE, PVC covered wire, copper wire, wire stranding

Advantages:

low noise and low loss,stable performance and simple operation,set the strand steplessly by PLC.

Main technical parameter
Supply line	∮200-250mm wire disc
Single wire OD	0.5-5mm
Max stranding OD	30mm
Speed	Max550rpm
Twisting pitch	30mm～350mm (PLC stepless setting of winch, free setting on the operation panel, the error of winch is less than 2.0 mm)
Pay-off bobbin size	∮500-630mm
Take-up bobbin size	∮1250mm
