Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder

I'm Online Chat Now
We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

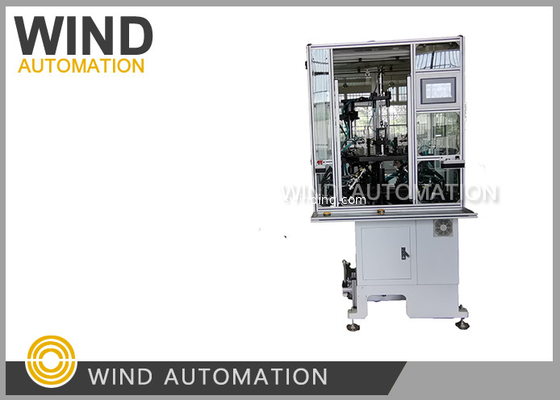

Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder

Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder
Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder

Large Image :  Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder Get Best Price

Product Details:
Place of Origin: China BLDC muti poles winding machine
Brand Name: Wind Automation
Certification: Wind the stator with 6 poles, 9 poles, 12 poles, 18 poles
Model Number: WIND-3-TSM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Delivery Time: Brushless motor stator winding, needle winding and segmented stator winding, muti-pole stator windin
Detailed Product Description
Stator Winding Machine Nozzle: Three Needle BLDC Stator Winding Machine 3 Nozzles Can Wind 3 Slots Per Time Segment Muti Poles Winder: 6,9,12 Poles Stator Segments Winding
Consantrated: Segments Winding Brushless DC Motors: Air Conditioner Compressor, Refrigerator Compressor,water Pump Automotive Application , Fuel Pump.
Needle Winder: THIS MACHINE DOES 3 WINDINGS AT ONE TIME
Highlight:

EC motor winding

,

Needle winding

Three needle BLDC stator winding machine segment muti poles winding machine 6, 9,12,18 poles stator segments winding

Needles  3 needles wind at same time, can finish the winding 2 times for 6poles BLDC stator
Winding diagram 3 phase BLDC motor with same winding way for each phase
Motor applciation

 Air conditioning compressor, Refrigerator compressor, water pump, fuel pump


Feature:
BLDC stator winder produce multi poles stator with 3nozzles(needles), winding trace is rectangle,
Parameter:
Wire diameter: 0.08~0.70mm
Stator ID:19~65mm
Stack height:7-90mm
Turns No.0-99999
Operation option: stepping/Auto
Stator poles: 6 poles, 9 poles, 12 poles, 18 poles (Customized)
Air pressure:5~7kg/square centi-meter
Power:2KW, AC220V 50/60Hz
Weight: about 450kgs Dimension: 1600(L)x1100(W)x1400(H)mm

Video:
https://vimeo.com/123470624
https://vimeo.com/116711778

The machine use needle to wind the coils to stator directly, unlike some external stator or some universal DC armature flyer winding machine, the wire move in the slot only, so for needle winding machine,
there must be enough space for the movement of the needle,
If you need to purchase the machine, you need to tell the machine supplier your stator drawing and height, including the important slot width size for checking enough space for the movement of needles.

Some BLDC stator manufacturers is considering using skew slot in their BLDC motor, as skew design might acquire better magnetic flux, till now some Italy machinery manufacturer can not produce this kind of machine. So if you consider using skew, you may have to do the coil winding manually.

BLDC winding machine Photo:

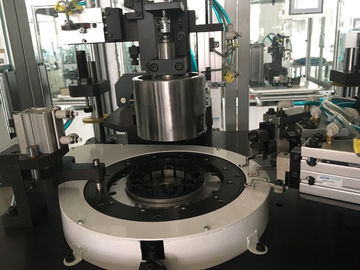

Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder 0

For internal slot design BLDC motor, there is needle winding machine with single,double or three nozzles for winding,the multiple nozzle can work at same time in single station.
Inslot BLDC motor stator needle winding machine WIND-TSM series had handed hundred of stators,
You can watch video on Youtube https://www.youtube.com/watch?v=KBQMGcY5Myo
Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder 1
Mutipole stator BLDC needle winding machine
Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder 2
Segments stator winder
Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder 3
Inner side stator needle winding machine
Three Needle BLDC Stator Winding Machine Segment Muti 6, 9,12 Poles Stator Segments Winder 4


Contact: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com

BLDC Needle winding machine best sold type WIND-3-TSM from EmilyGao of coils winding supply on Vimeo.
