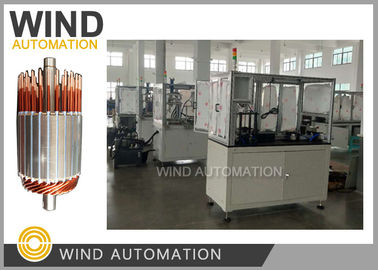

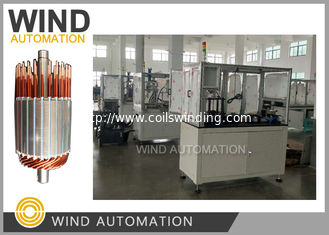

Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine

Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine
Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine

Large Image :  Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine Get Best Price

Product Details:
Place of Origin: Chinese machine for rewind generator
Brand Name: Automobile
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: In USD
Contact Now
Detailed Product Description



WIND-AWF-R Automobile armature starter hairpin forming round coil winding forming machine

Advantages:



1. Cycle time Around 3s/pc,

2. Mitsubishi PLC, Weinview touch screen,Airtac cylinder and valve,Schneider Electrical components



Application:

Form wire starter motor, oil pump motor armature round copper wire production,

automatic wire straighten alignment, peel enamel(enamel stripping),loading,cutting and hairpin forming shaping, unloading.Produce hairpin coils winding for the starter armature



Specification

Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm


Configuration:
Mitsubishi PLC
Weinview touch screen
Korea SPG enamel remover
Airtac penumatic unit
Schneider electronic unit



Video:

https://vimeo.com/144114802

https://vimeo.com/143329847



https://vimeo.com/169939571

https://youtu.be/AbF45xTtLN8





Pin forming machine Photos under production and delivery

Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine 0

Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine 1





Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine 2

Starter Armature Hairpin Conductor Windings Forming Round Copper Wire Forming Machine 3



Contact:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-17721374887

Website: http://www.motor-machinery.com; http://www.statorwindingmachine.com

Round wire forming and winding for starter armature rotor WIND-AWF-R from EmilyGao of coils winding supply on Vimeo.
