Starter Motor Armature Slot Cell Insulator Insert Rotor Insulation Paper Inserting Machine Working Video
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Starter Armature Slot Cell Insulation: | Starter Motor Paper Inserting Machine | Starter Motor Armature Insulation Paper Inserting: | Insert Paper Cycle Time 1s/slot |
|---|---|---|---|
| Slot Cell Insulator Device: | Feeding Paper Servo Motor, | Armaduras: | Starting Armature |
| High Light: | starter motor slot cell insulation,Starter armature slot cell inserting,Starter armature paper inserting |
||
Starter armature slot cell insert starter motor insulation paper inserting machine WIND-SZ form and insert insulation paper to starter motor armature slot , S shape, O shape are popular.
An "S" shape for the slot insulator as long as it meets the intended design of insulate the wires from each other and the steel core.
Paper inserting machine advantages
1. Better configuration
We insist on using the best configuration for oversea market which can ensure the stable performance
2. The machine mechanical structure co-work perfectly with electronic system, achieve Higher stable performance in starter armature manufacturing market,
3. Easy operation and quicker change tooling
https://youtu.be/sAH1ERJI-f0 Related 3 major Tooling parts
https://youtu.be/IK6ez_aG6Jg How to change paper
| Paper inserting machine paper shape | S type, O type, U type |
| Slot cell inserter cycle time | 1 s/ slot , for car rotor armature mass production |
| Heater temperature for paper shape forming | 70 ~ 100 ℃ |
Paper inserting machine Features:
Paper automatic heating, shaping, cutting off and insertion,automatic indexing
Servo motor: Delta or Mitsubishi
PLC: Mitsubishi
Pneumatic system :Airtac
Electronic unit:Schneider
Parameter:
Insulation material thickness: 0.18~0.2mm
Armature stack height: Max 100mm
Power Supply: 220V±10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Heating temperater: 70~100℃
Weight: Around 700KGS
Dimension: 1200*650*1500mm

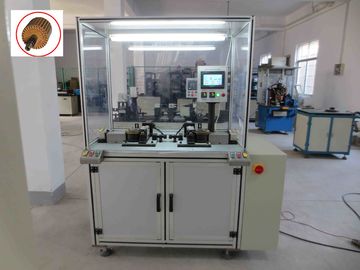

Machine is for automobile starter motor armature slot insulation(video)
It automatic forming shaping the s shape cell and insert to starter armature.
One station WIND-SZ-1 is suitable for types of starter armature because you need to change tooling frequently
Two station WIND-SZ-2 is suitable for mass produciton of huge output starter armature
Question and Answer:
1. I need to know more details about yout paper inserting machine,
please send me manual, tooling photos, setup videos etc…
We took video about tooling parts and paper change demo,
https://youtu.be/sAH1ERJI-f0 Related 3 major Tooling parts
https://youtu.be/IK6ez_aG6Jg How to change paper
Feedback of oversea custome:
This paper inserting machine that we bought to your company is working excellent we are not experienced any inconvenient or failure, we are happy with the performance of this equipment.
Car starter armature one station S type paper inserting machine

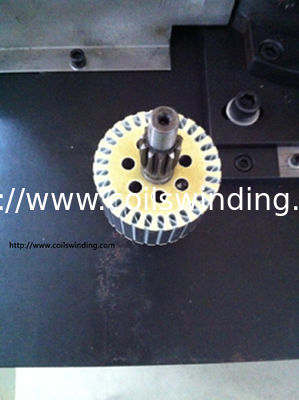

Starter motor armature slot cell Insulator insert before shipment
