Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils

Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils
Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils

Large Image :  Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: WIND-90-CWIwinding and wedge inserting machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: wedge and coil inserter polywood case
Delivery Time: 60 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description

Coil inserter Stator slot Concentric Winding and insertion machine install wedge and coils

Technical parameter:

Thickness of stator lamination: 8mm-125mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 380V/ 50Hz
Air pressure: 0.5-0.8MPa
Power: 3.5KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1800mm × 650mm × 1700 mm
Weight: ≈ 1000kg



Wedge and coils insertion Working video:

https://vimeo.com/108425117



Photo:

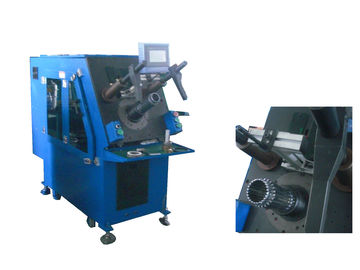

Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils 0

Coil Inserter Stator Slot Concentric Winding And Insertion Machine Install Wedge And Coils 1



Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
