Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding

Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding
Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding

Large Image :  Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding Get Best Price

Product Details:
Place of Origin: China hub motor stator winding manfacturing machine
Brand Name: Wind Automation
Model Number: WIND-HMW muti wires winding electrical bike motor winding machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Detailed Product Description

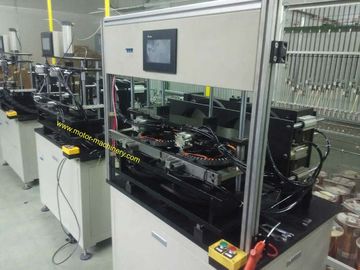

WIND-HMW-2 Double station E-bike PMDC wheel motor winding Brushless hub motor stator winder muti coils winding machine wind the 15pcs parallel wires up to 0.51mm,  with 6,8,10,12,14,15 parallel wires for different voltage motor such as 24,36,48,62V

WIND-HMW muti wires winding electrical bike motor winding machine  Could save 6% to 15% copper wire, around 8 mintues per piece

Electric hub motor stator winding BLDC E-bile winding muti coils winding  machine wheel motor winding

Parameter

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Configuration:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Video:

http://www.vimeo.com/123941149

https://vimeo.com/116029373

The machine working for this E-bike motor manfaucuring plant with prodution 90% percent pass

https://vimeo.com/143262581

Photos:

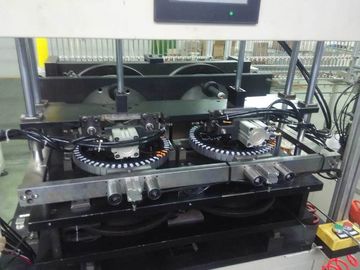

Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding 0

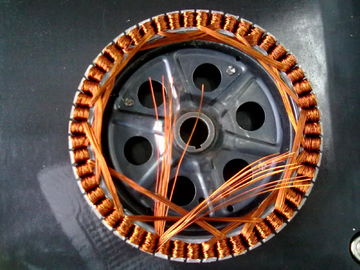

Electric Hub Motor Stator Winding BLDC E-Bike Winding Muti Coils Winding 1
