Muti Poles Brushleses Electric Motor Stator Teeth Smart Winding Machine BLDC Stator Precise Winder
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Stator Poles: | 6 Poles, 8 Poles, 9poles,10poles,12 Poles,14pole,15pole,18poles | Stator Shape: | Round Stator Or Square Stator |
|---|---|---|---|
| Brushless Motor: | Muti Poles Stator Teeth Winding, Stepping Motor |
Muti pole stator winding machine WIND-TSM series For wind the brushless DC motor stator Application: Stepper motor, PM motor, induction motor, built-in stator(internal winding stator)
WIND-1-TSM Mutipole stator winder
|
Stator winding machine application |
3 phase BLDC motor, 1phase brushless motor,stepping motor |
|
Winding stator poles segment |
6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles |
| For winder machine manufacturing | stator samples each 2pcs (1pc wound stator,1pc stator without winding ) |
Advantages:
WIND-1-TSM BLDC stator winder produce multi poles stator such as 6poles,8poles,9poles,12poles,14poles , widely used in producing BLDC motor and stepper motor
Smart and precise machine with Mitsubishi PLC, Kunlun MCGS Touch Screen, Airtac cylinder
Easy to adjust and opearate,
Unique CAM technology that many winding machine suppliers want to copy but never get the point
Stator winder needle winding place tooling
BLDC Staor neelde winding machine WIND-1-TSM

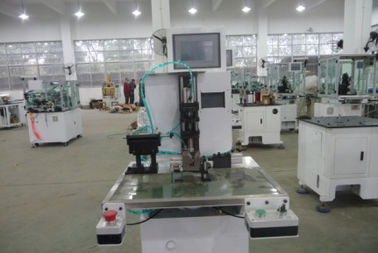

Segment stator needle winder touch screen
Needle winding machine press tooling protection fixture for covering stator during winding
Stator winding machine tooling
Small slot size stator needle winding
Parameter:
Wire diameter: 0.08~1.20mm
Stator ID:15~65mm
Stack height:7-115mm
Turns No.0-99999
Operation option: stepping/Auto
Stator poles: 6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles (Customized)
Air pressure:0.5~0.7MPa
Power:1KW, AC220V 50/60Hz
Weight: about 350kgs Dimension: 1600(L)x900(W)x1450(H)mm
Brushless motor simple winding machine video
Winding machine type WIND-1-TSM for brushless stator with 6poles, 8poles and 9 poles can use same winding machine by changing tooling,
stator with 10poles, 12poles, 15 poles can use same winding machine by changing the tooling,
Question and Answer:
1. The machine WIND-1-TSM is widely used for 6 poles, 8 poles,9pole,10poles,12poles,14poles and 18poles stepper motor and BLDC motor with Single phase or three phase
2.How is the training to operate the machine?
For machine tranining, usually you send one people to our plant to inspect before delivery,
WIND-1-TSM is not a complicated machine, if your engineer have experience then you don't need to come and we can take some vidoes for you to operate
3. Is the machine from you is switched on and put into operation
Yes, machine is switched on from machine side for power on machine and Start, Emergency button , Auto/Step swith to operate machine
4. I have not wound stator. Why do you need for wound stator?
The wound stator can show us the winding diagram which include winding way,bridge wire, terminal wire,
If you don't have wound stator, please provide winding drawing,
Contact: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com
Contact Details
Shanghai Wind Automation Equipment Co.,Ltd
Contact Person: Ms. Emily
Tel: 86-18019121458
Send your inquiry directly to us
