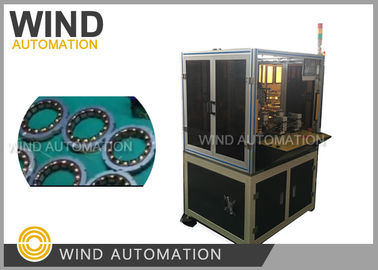

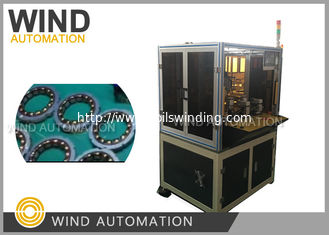

Resolvers Brushless Motor Stator Winder Outside Winding Machine For New Energy Car

Resolvers Brushless Motor Stator Winding Machine Advantages:

1. Dedicated machine for skew type resolvers motor stator outside winding

2. Wind Automation have rich experience in winding resolvers

1200RPM Brushless DC New Energy Revolving Motor Stator Needle Winding Machine WIND-T1000

(1) Application

High Efficiency Needle winding for BLDC Stators

Small Pump Motor, New Energy Automobile Car Revolving Motor,

DC Brushless Motor,New Energy Car Spinning Stator Winding Machine

(2) Advantages

Dedicated Winder for small motor with thin wire, crazy fast 1000~1200RPM,

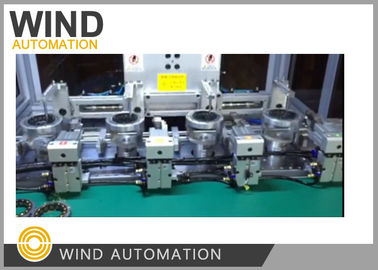

Four station BLDC Stator winding machine WIND-T1000 wind the brushless DC motor stator

with four station to improve efficiency!

(3) Parameter

Wire diameter:0.01 to 0.70 mm (suitable for thin wire and small stator)

Stator ID: 12 to 130 mm

Stack height: 5 to 30mm

Winding motor: Servo motor Panasonic 3000W 1pc

Arraying motor: Servo motor Panasonic 2000W 2pcs

Indexing motor; Servo motor Panasonic 750W 2pcs

Speed: 300 to 600 RPM

Air pressure:5~7kg/square centi-meter

Power:AC380V 50/60Hz

Weight: about 480kgs

Dimension: 1800(L)x850(W)x1600(H)mm

Below samples are needed for machine manufacturing and commissioning:

Resolvers winding Video:

Please click below video to watch machine winding for 14 pole new energy vehicle rotary motor

https://youtu.be/W88vS8VnByA
