Main technical data:

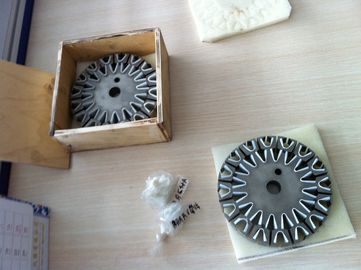

Application: suitable for winding ceiling fan stator,
internal,external armature such as frequency conversion alternator and generator armature.
The machine has two working stations.
Controlled by micro computer,
auto winding, auto allay, auto indexing;
allay and indexing is controlled by stepping motor, winding is controlled by frequency converting motor,
turns number could be accurate up to 0.1 round.
Wire diameter: 0.05-0.45mm
Stator O.D: 100mm-163mm
Stack height: 6-30mm
Slot number: less than 24 slots
RPM: 2500RPM Max
Voltage: 220v/50Hz, or customize
Power: AC 1.5kw
The video for an Argentina customer dated Oct 20,2013
