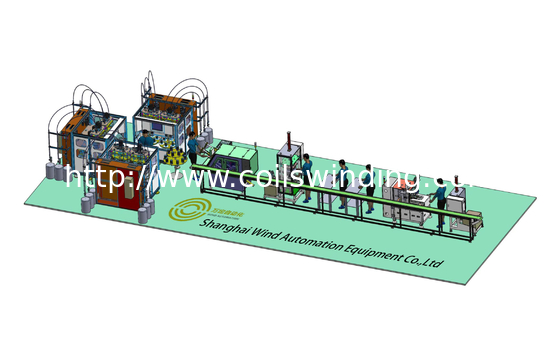

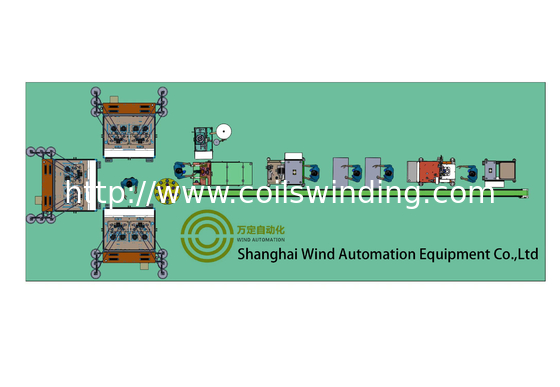

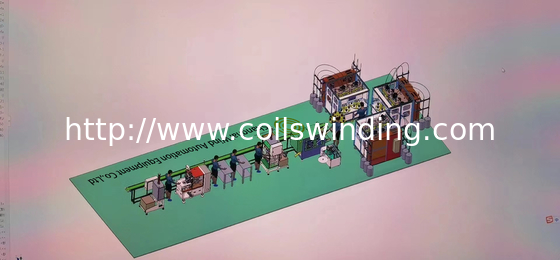

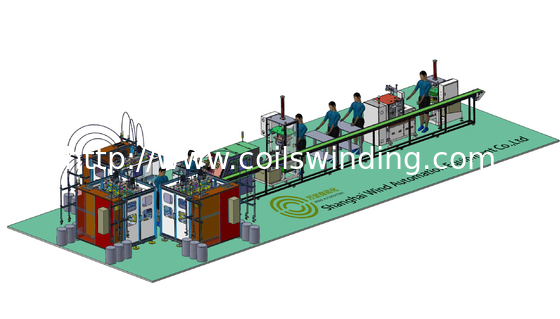

Induction Motor Pump Compressor Motor Stator Winding Machine Production Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
shaping and
Inserter type stators which includes Slot cell
inserter, Winding, Coil & Wedge inserting, Coil forming, Lacing and testing equipment.
Horizontal winding machine WIND-160-HW
is Multi-tap wire array automatic winding machine
which makes coils for induction motor stator such as compressor, pump, air conditioner motor.
Technical Data:
Diameter of Wire: 0.1-1.0mm
Winding Diameter:25-280mm
Wire feeding head: 1-8 pc
Max rotation speed: 3200R.P.M
Input: 220V/50Hz
Air pressure: 0.5-0.8MPa
Power: 0.75KW
Machine productivity: around 1500 pcs/8 hours
Video:
https://www.youtube.com/watch?v=-NEdsOzLuas
Dimension: 1350mm × 1200mm × 1200mm
Weight: ≈ 600kg
Contact:EmilyGao
Email:emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com
