Table Fan Water Pump Air Compressor Motor Stator Insulation Paper Inserting Machine

Table Fan Water Pump Air Compressor Motor Stator Insulation Paper Inserting Machine
Table Fan Water Pump Air Compressor Motor Stator Insulation Paper Inserting Machine Table Fan Water Pump Air Compressor Motor Stator Insulation Paper Inserting Machine

Large Image :  Table Fan Water Pump Air Compressor Motor Stator Insulation Paper Inserting Machine Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: WIND-160-SI
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Contact Now
Detailed Product Description

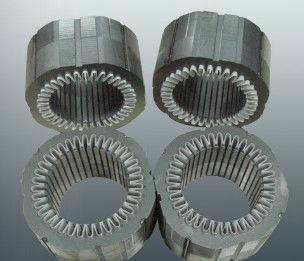

WIND-160-SI Slot paper insertion machine Insert insulation paper polyester to stator's slot to insulate the stator stack and winding.

Alta eficiencia, tecnología avanzada, estable performance.Help a reducir costes mientras mantienen la alta calidad

Laminated thickness of stator

Lamina espessura: 10mm-60mm

Max outer diameter of stator: Φ 160mm
Diameter of stator: Φ 40mm- Φ 80mm
Height of edge folded: 2.5mm-4mm
Max insulation paper's thickness: 0.35mm
Feeding length: 12mm-45mm
Tack time: 0.5－0.7s/slot
Input: 380V/50Hz
Power: 0.75KW
Machine productivity: around 1500pcs/8hours
Dimension: 1150mm × 1000mm × 1500mm

Weight: ≈ 400kg



Video:

https://vimeo.com/125464089

Water pump air compressor Electric motor paper inserting machineWIND-100-SI stator slot insulation Wind Automation from EmilyGao of coils winding supply on Vimeo.
