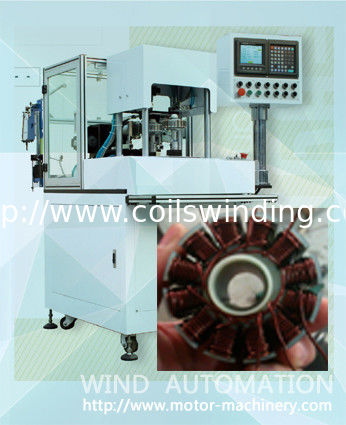

Outrunner Outside Stator Winding Mahchine

Outrunner Outside Stator Winding Mahchine
Outrunner Outside Stator Winding Mahchine

Large Image :  Outrunner Outside Stator Winding Mahchine Get Best Price

Product Details:
Place of Origin: Two pole stator winding machine China supplier
Brand Name: Wind Automation
Model Number: WIND-2-TDS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Detailed Product Description
Stator Type: Outside Slot Stator Winding

Outside Stator12 poles stator winding machine muti poles winding

Motorcyle outside stators winder

Technical Data:

Wire diameter: 0.15~1.5mm

Stator ID: 15~260mm

Stator stack height:7~60mm

Turns no.:0~99999

Winding speed:0~1500rpm

Mode: Step/Auto

Airsource:5~7KG/cm2

Machine power: 2.5KW

1phase AC 220V 50~60Hz

Weight: about 600KGS

Dimension:1150*2350*1500mm



Configuration:

Taiwan Hust H6D CNC system

Taiwan Delta servo system

Airtac cylinder





Video:

https://youtu.be/dYuN3EEgSas

https://youtu.be/cIUL9HekVuI

https://youtu.be/GExxcdPv2uI
