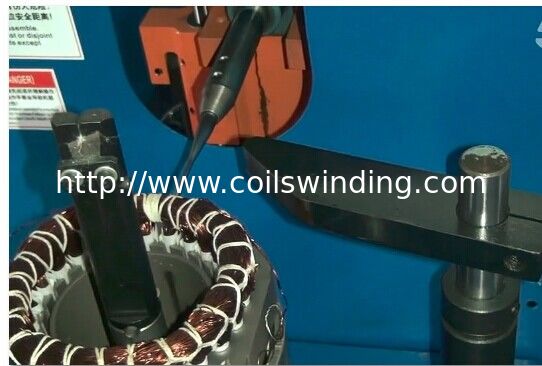

Stator Winding Over-Hang Single Side Lacing Coils Binding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Stator Winding Over-Hang Single Side Lacing Coils Binding Machine Parameter:
Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm
Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg
Video:
Contact: sales3@motor-machinery.com
Single side coils lacing machine WIND-100-CL from EmilyGao of coils winding supply on Vimeo.
