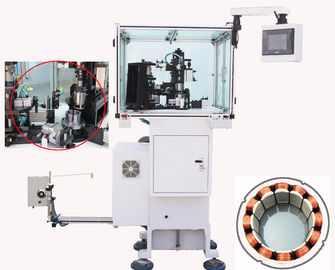

Three Needle Winding Machine For BLDC Stator Winder With Thick Wire 0.8mm (Best Soldl)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Brushless motor stator winding including fly winding, needle winding and segmented stator winding, muti-pole stator winding
Feature:
This type of brushless motor stator winding machine is designed to produce multi poles stator. Its winding track is in square shape. It does wires arraying automatically. It is the best sell during all stator winder during to reasonable price and stable quality
Parameter:
Wire diameter:0.1~0.7mm
Stator ID:15~65mm
Core length:7-100mm
Turns No.0-99999
Operation option: stepping/Auto
Stator poles: 6 poles, 9 poles, 12 poles (Customized)
Air pressure:5~7kg/square centi-meter
Power:2KW, AC220V 50/60Hz
Weight: about 450kgs
Dimension: 1600(L)x1100(W)x1400(H)mm
Video:
BLDC Needle winding machine best sell type WIND-3-TSM from EmilyGao of coils winding supply on Vimeo.
