Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor

China Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor supplier
Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor supplier Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor supplier Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor supplier

Large Image :  Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor

Product Details:

Place of Origin: ebike motor winding China supplier
Brand Name: Wind Automation
Model Number: electrical bike motor winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Detailed Product Description

Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor Advantages:

Could save 6% to 15% copper wire, around  7 mintues per 2pcs



Parameter

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Configuration:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Video:

https://vimeo.com/143262581

http://www.vimeo.com/123941149

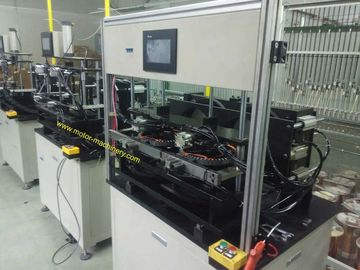

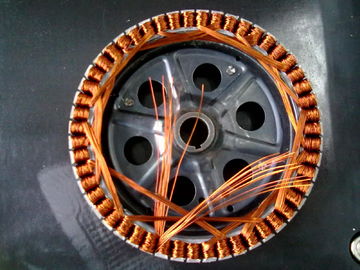

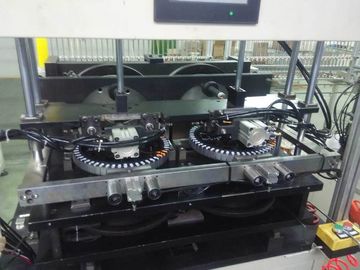

Photos:

Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor



Bicycle Frame Hub Muti Coils Winding For Wheel Motor With Brushless Hall Sensor



Contact:Emily

Email: emily@motor-machinery.comn

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com

Electric hub motor stator winding BLDC E-bile winding muti coils winding

machine wheel motor winding video https://vimeo.com/116029373
