Winder Station: | Two/Four Station | Winding Type: | BLDC Stator Needle Winding Rather Than Flyer Winding |
---|---|---|---|
Teeth: | 6teeth, 8teeth, 9teeth, 12teeth | Winding Diagram: | Star Connection Or Delta Connection |

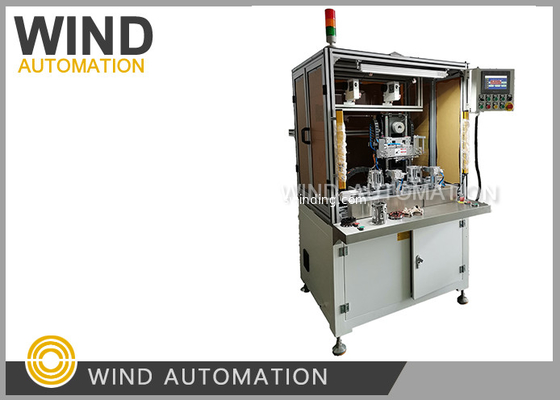

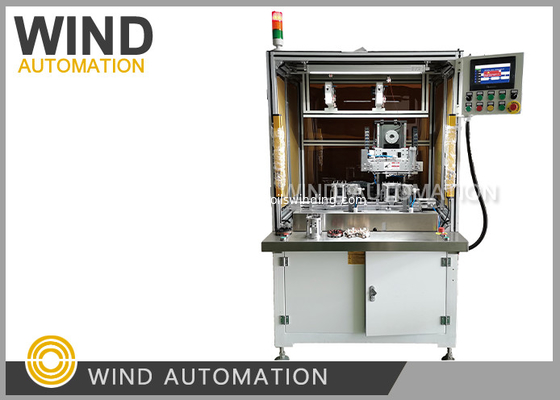

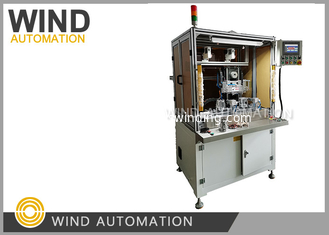

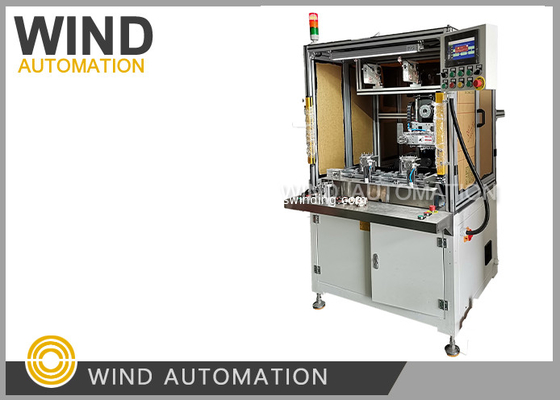

Brushless Motor Muti-Pole Stator Needle Winding Segmented Teeth Winder WIND-BLDC-2
(1) Application

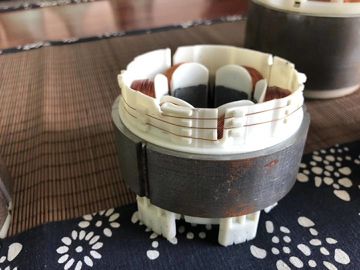

Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Refrigerator
compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12 poles or
18 poles
(2) Advantages
Four station BLDC Stator winding machine WIND-BLDC-2 wind the brushless DC motor stator
with four station to improve efficiency!
All the toolings are very easy to be changed within 1 minutes expect
the power tool BLDC motor stator which have terminal wires on both sides, not one side.
(3) Parameter
Wire diameter:0.08 to 1.2mm (suitable for thin wire and small stator)
Stator ID: f12 to 130 mm
Stator OD: f20mm to 120mm
Stack height: 5 to 70mm
Winding motor: Servo motor Panasonic 3000W 1pc
Arraying motor: Servo motor Panasonic 2000W 1pcs
Indexing motor; Servo motor Panasonic 750W 2pcs
Speed: 300 to 600 RPM
Air pressure:5~7kg/square centi-meter
Power:AC380V 50/60Hz
Weight: about 480kgs
Dimension: 1800(L)x850(W)x1600(H)mm
Below samples are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 15pcs stators
Please click below video to watch machine working
