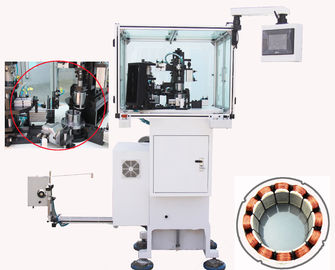

Muti Pole Stator Winder BLDC Stator Winder Needle Winding Suitable for 9Slots 12Slots Multiply of three Poles

: Large Image : Muti Pole Stator Winder BLDC Stator Winder Needle Winding Suitable for 9Slots 12Slots Multiply of three Poles

Product Details:

Place of Origin:	BLDC mutipole winding machine China supplier
Brand Name:	Wind Automation
Certification:	needle winding and segmented stator winding, muti-pole stator winding
Model Number:	WIND-TSM-3

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Supply Ability:	needle winding and segmented stator winding, muti-pole stator winding

Contact Now

Detailed Product Description

Muti Pole Stator Winder BLDC Stator Winder Needle Winding Suitable For 9Slots 12Slots Multiply Of Three Poles Feature:

This type of brushless motor stator winding machine is designed to produce multi poles stator.

Its winding track is in square shape. It does wires arraying automatically.

It is the best sell during all stator winder during to reasonable price and stable quality

Parameter:

Wire diameter:0.1~0.7mm

Stator ID:15~65mm

Core length:7-100mm

Turns No.0-99999

Operation option: stepping/Auto

Stator poles: 6 poles, 9 poles, 12 poles (Customized)

Air pressure:5~7kg/square centi-meter

Power:2KW, AC220V 50/60Hz

Weight: about 450kgs

Dimension: 1600(L)x1100(W)x1400(H)mm

Video:

youtu.be/KZFSlhTHXn8
