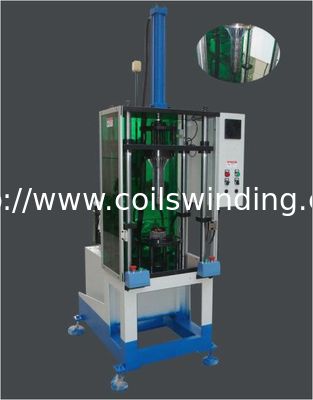

Stator Coil Forming Machine Pre-Forming Before Lacing Coil Head Forming

Stator Coil Forming Machine Pre-Forming Before Lacing Coil Head Forming
Stator Coil Forming Machine Pre-Forming Before Lacing Coil Head Forming

Large Image :  Stator Coil Forming Machine Pre-Forming Before Lacing Coil Head Forming Get Best Price

Product Details:
Place of Origin: China machine
Brand Name: Wind Automation
Certification: Pre-forming machine for two times coil inserted type stator
Model Number: stator coil forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Pre-forming machine for two times coil inserted type stator
Detailed Product Description

Stator Coil Forming Machine Pre-Forming Before Lacing Coil Head Forming

Internal diameter coil head forming,

External diameter coil head forming

Coil head height forming

Compacting of wires inside slots



Technical Data:

Thickness of stator lamination: 15mm-100mm
Stator ID: Φ 30mm- Φ 100mm
Max outer diameter of stator: Φ 160mm
Displacement of oil pump: 20F
Input: 380V /50Hz
Power: 1.5KW
Machine productivity: around 1500pcs/8 hours
Dimension: 1200mm × 700mm × 2200mm
Weight: ≈ 800kg
