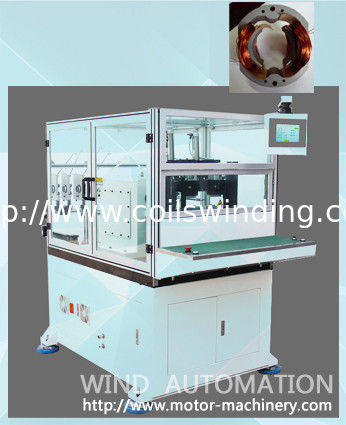

Automatic Two Pole Universal Motor Stator Coil Winding Stator Winder

: Large Image : Automatic Two Pole Universal Motor Stator Coil Winding Stator Winder

Product Details:

Place of Origin:	Chinese machine for producing excited motor stator
Brand Name:	Wind Automation
Model Number:	stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Payment Terms:	50% TT in advance, the rest at side of B/L copy
Supply Ability:	motor winding machine

Contact Now

Detailed Product Description

Automatic Two Pole Universal Motor Stator Coil Winding Stator Winder Advantages:

30s/pc, save time, less labor

Mitsubishi PLC,. Mitsubishi frequency converter

Airtec cylinder and air source part

Parameters:

Wire range: 0.15—1.3mm

Stack length: 20—60mm

Pole: 2

Turns range: 0—99999

Stator O.D: 50—150mm

Main spindle speed: 0—450RPM

Air pressure: 5-7kg/cm2

Voltage:415v/3, 50/60HZ

Motor power: 4.5KW

Weight: 1.2T

Dimension: 1050*2300*1750mm

NCM No / HS Code: 8479811000

Manually load the tooling, clamp the wire, automatically finish the winding

Video:

https://vimeo.com/135349536

Contact:EmilyGao

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
