Air Conditioner Compressor Water Pump Motor Stator Insulation Paper Inserting Machine
Product Details:
|
Detailed Product Description
Air Conditioner Compressor Water Pump Motor Stator Insulation Paper Inserting Machine

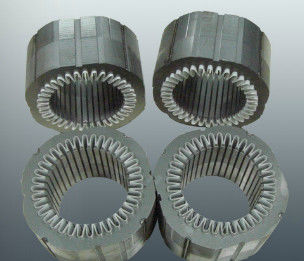

Insert insulation paper polyester to stator's slot to insulate the stator stack and winding.
Alta eficiencia, tecnología avanzada, estable performance.Help a reducir costes mientras mantienen la alta calidad
Laminated thickness of stator
Lamina espessura: 10mm-60mm
Max outer diameter of stator: Φ 160mm
Diameter of stator: Φ 40mm- Φ 80mm
Height of edge folded: 2.5mm-4mm
Max insulation paper's thickness: 0.35mm
Feeding length: 12mm-45mm
Tack time: 0.5－0.7s/slot
Input: 380V/50Hz
Power: 0.75KW
Machine productivity: around 1500pcs/8hours
Dimension: 1150mm × 1000mm × 1500mm
Weight: ≈ 400kg
Contact:EmilyGao
Email:emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: www.motor-machinery.com;www.coilswinding.com
