BLDC Muti Pole Stator Needle Winding Machine Inner Slot Winder

Large Image : BLDC Muti Pole Stator Needle Winding Machine Inner Slot Winder

Product Details:

Place of Origin:	Chinese machine for producing BLDC electric motor stator
Brand Name:	Wind Automation
Model Number:	Muti plole stator winding machine

Payment & Shipping Terms:

Minimum Order Quantity:	1pc

Contact Now

Detailed Product Description

Electric Motor:	Brushless Motor Stator Muti Pole Inner Slot	Inslot Or Outside Slot:	Inner Slot Stator Winder
BLDC Motor And Stepper Motor:	Refrigerator Compressor Motor Stator Winding, Air Conditioner Compressor	Auto Or Semi-auto:	Automatically Complete Winding, Indexing, Hanging Wire, Hanging The Wire Head And Wire End And Cutting Wire.

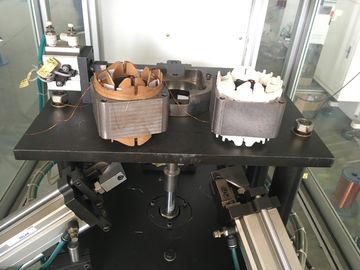

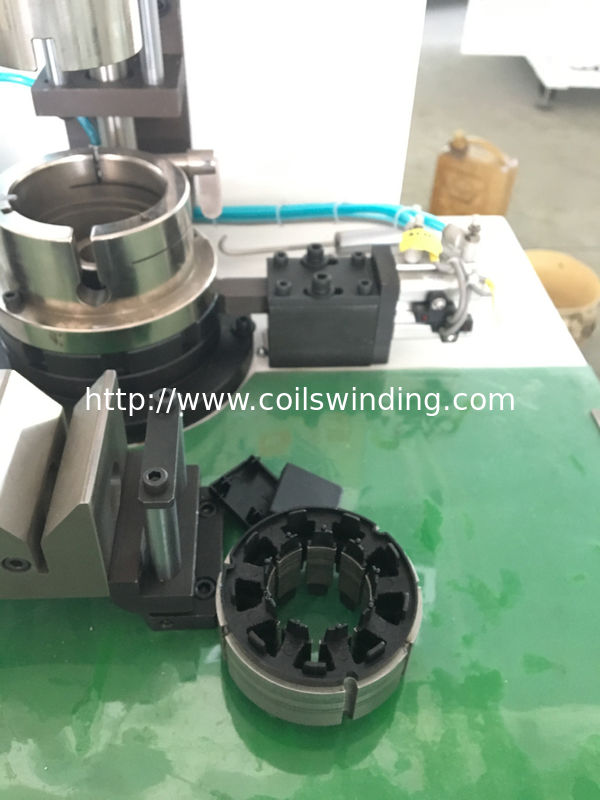

BLDC Muti Pole Stator Needle Winding machine inner slot winder WIND-TSM Seres

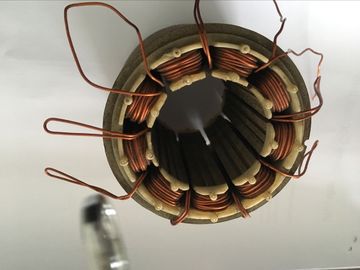

wind the brushless DC motor stator,

BLDC Muti Pole Stator Needle Winding Machine Inner Slot Winder

Parameter:

Copper wire diameter:φ0.1～φ0.8mm

Stator slot no.: 4,6,8,9,12 poles per custom requirement

Stator OD: ≤200mm

Stator ID: ≥28mm

Stator height: 10~20mm

Slot width: ≥1.8mm

Main spindle speed: 100～750rpm

Air pressure: 0.4～0.6MPa

Power: 1.5KVA

Output: Around 320pcs/shift (8 hours)

Dimension:650*480*1500mm

Gross Weight: 500KGS

Machine demo video:

http://youtu.be/1kOg70ra-28

Q&A of stepper motor winding machine WIND-1B-TSM with 2 nozzles wind 2slots at same time

Stator winding machine characteristics type 1: Plz, indicate the model №__________			Confirmation: yes/no. If NO, plz indicate your parameter
1	Stator tube diameter	70 mm	YES
2	Stator tube width	15 mm	YES
3	Number of axies	4 minimum	NO
4	Line coordinates tolerance	±0,01 mm	YES
5	Angular coordinate tolerance	±0,5 angular minute	YES
6	Shaft pitch	minimum 100 mm	YES
7	Winding speed	10 – 60 winds prm	YES,350~400RPM
8	Stator max. Outer diameter	63 mm	YES
9	Stator Inner diameter	no limits	>15mm
10	Maximum length of the stator with the front parts	80 mm minimum	YES
11	Minimum length of the stator with the front parts	15 mm	YES
12	Stator slots	no limits	NO,6,8,9,10,12,14,18slots
13	Minimum slot width	0,8 mm	YES
14	Working wire diameter	0,063 – 0,315 mm (twin)	YES
15	Number of spindles	2	No, 2 nozzles, 1 spindle
16	Number of tensioners	2	YES
17	Control mode	Laptop with Software	NO,PLC and HMI
18	Power supply	3~380 V (±15%), 50 Hz, 2 kW	NO,1~220V,50Hz,1.5KW
