Machine For Lace The Stator End Coils With Single Station

Name: Machine For Lace The Stator End Coils With Single Station
Brand: Wind Automation
SKU: stator coils one side lacing two side lacing machine
Rating: 4.5 (167 reviews)

Large Image : Machine For Lace The Stator End Coils With Single Station Get Best Price

Product Details:

Place of Origin:	Chinese machine for producing electric motor
Brand Name:	Wind Automation
Certification:	stator coil lacing machine
Model Number:	stator coils one side lacing two side lacing machine

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	In USD
Delivery Time:	coil lacing machine

Contact Now

Detailed Product Description

Machine For Lace The Stator End Coils With Single Station

Stator lacing machines to manufacture electric motors, to lace the stator end coils.

Parameter:

Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm

Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm

Weight: ≈ 600kg

Engineer show the process to customer in our plant

Video:

http://youtu.be/Q6Xd4CuZFd4

Photo:

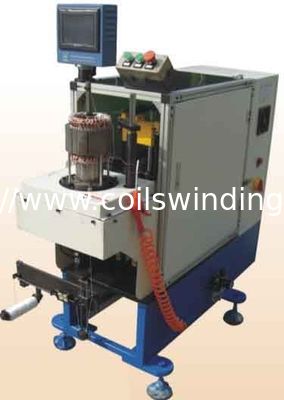

Machine For Lace The Stator End Coils With Single Station 0
