Insulate Slot Cell Form Insulation For Stack And Coil Before Winding
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

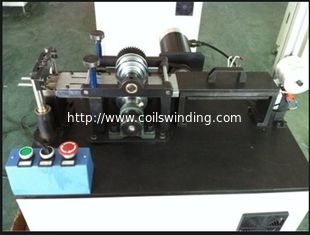

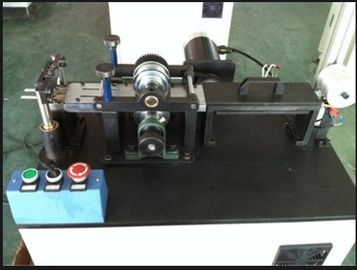

Insulate Slot Cell Form Insulation For Stack And Coil Before Winding
Form and cut the insulation paper for universal motor stator, cell insulation such as mixer,grinder,power tools,
Main technical data:
Armature O.D: Ф20-55mm
Length of lamination: Max 60mm
Parameter:
Shaft length: 32~250mm
Shaft O.D: Ф6~Ф20mm
Slot number: 8-24 slots
Commutator O.D: Ф16~Ф50mm
Speed regulation range: 0~60Hz
Length of insulation paper: 15-60mm adjustable
Thickness of insulation paper: 0.1 mm ~ 0.5 mm
Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.
Insulation paper shape: V or edge-folding V
Efficiency: 0.5sec - 0.8sec/per slot, loading
Formed paper:
Working video:
https://www.youtube.com/watch?v=5PL1h7nWriU
