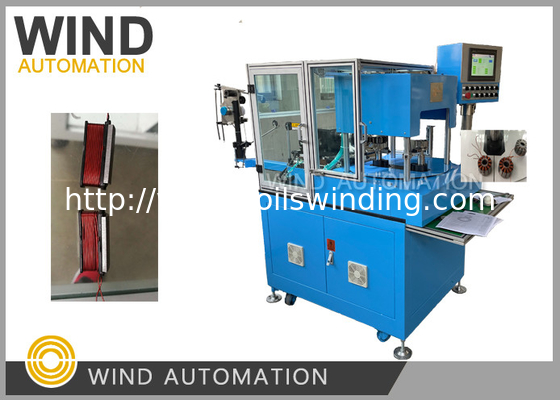

BLDC Stator Segmented Winding Machine Muti 9, 12 Poles Motorcycle Magneto Outside Rotor Winder

BLDC Stator segmented winding machine muti poles winding

BLDC Stator segmented winding machine muti poles winding 9 12 poles motorcycle outside stator winder,

Motorcycle outside magnetor stators coil winding machine

Outside Stator Winding Machine Competitive Advantages:

1. Magnetor stator dedicated winding machine for big motorcycle parts manufacturers

in Chongqing China, Mature Winder with repeated orders

2. Turnable head can improve the winding automation and ease operation's labor

3. Perfect winding layer have neat and tidy appearance, also good quality with small resistance

Cycle time of winding 1pc Magneto stator

1.For a 18slots stator, wire guague is SWG21 0.813mm, 42 turns

winding machine speed can be 500~1000RPM and it take about 4 minutes to finish one magneto stator coils winding

Magneto Stator Outrunner Outside Stator winding machine Technical Data:

Wire diameter: 0.15~1.5mm

Stator ID: 15~260mm

Stator stack height:7~60mm

Turns no.:0~99999

Winding speed:0~1500rpm

Mode: Step/Auto

Airsource:5~7KG/cm2

Machine power: 2.5KW

1phase AC 220V 50~60Hz

Weight: about 600KGS

Dimension:1150*2350*1500mm

Stator Wider Configuration:

Taiwan Hust H6D CNC system

Taiwan Delta servo system

Airtac cylinder

https://youtu.be/oRbgCgy5mWQ

Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-17721374887

Website: http://www.statorwindingmachine.com; http://www.coilswinding.com

Stator Segment Winding machine WIND-2-TDS from Leo Wang of www.coilswinding.com on Vimeo.

For winding machine quotation:

Segmented stator winding details is needed

Automatic winding machine Video:

https://youtu.be/oRbgCgy5mWQ

 segmented stator winding
