Wheel Motor Winding Machine Initial Type

Detailed Product Description
Highlight:

wheel motor winding

,

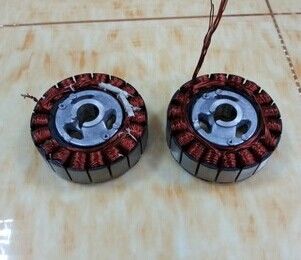

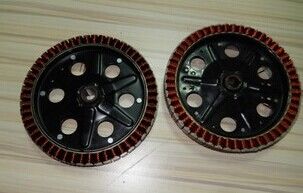

external rotor stator winding

,

electric bike wheel winding

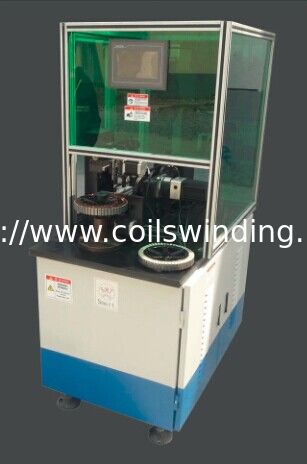

This wheel motor winding machine is designed for the electric bike,the winding machine is controlled by servo system and HMI. it can automatic wire feeding,muti-diameter wire winding,automatic indexing,slot-skipping,you can check the output on touch screen

Wire diameter: 0.2~1.0mm

Stator diameter: 150~300mm

Litz wire number: 1~9pcs

Stator height:15~35mm

Power supply: 220V,50HZ, 1.5KW

Weight: around 400KGS

Dimension: 1300*800*1500mm
