BLDC Stator Needle Winding Machine Brushless Stator Muti Pole Winding Machine Three Axis

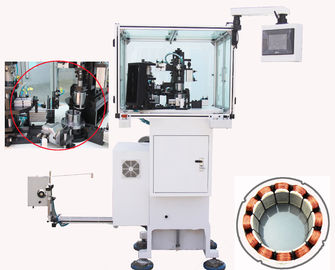

Large Image : BLDC Stator Needle Winding Machine Brushless Stator Muti Pole Winding Machine Three Axis

Product Details:

Place of Origin:	Chinese needle winding
Brand Name:	Wind Automation
Certification:	Customised made machine for producing Brushless hub motor
Model Number:	WIND-3-TSM Three needle winding machine segmented stator winding

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	50000USD
Packaging Details:	Polywood case
Delivery Time:	60 working days
Payment Terms:	T/T, L/C,

Contact Now

Detailed Product Description

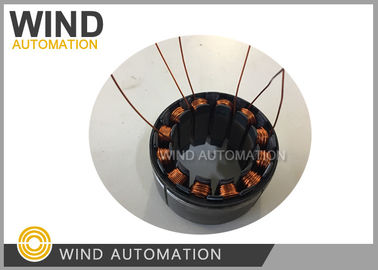

Stator Winding Machine:	6, 9, 12 Muti Poles Stator Winding With 3 Slots Per Time

BLDC Stator needle winding machine brushless stator muti pole winding machine three axis

Feature:

This type of brushless motor stator winding machine is designed to produce multi poles stator.

Its winding track is in square shape. It does wires arraying automatically. It is the best sell during all stator winder

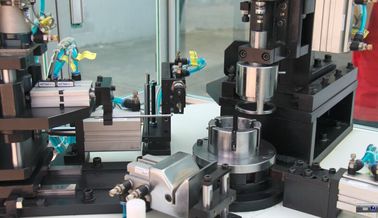

during to reasonable price and stable quality, below is the tooling photo,

BLDC Stator Needle Winding Machine Brushless Stator Muti Pole Winding Machine Three Axis

Stator needle winder Parameter:

Wire diameter:0.1~0.7mm

Stator ID:15~65mm

Core length:7-100mm

Turns No.0-99999

Operation option: stepping/Auto

Stator poles: 6 poles, 9 poles, 12 poles (Customized)

Air pressure:5~7kg/square centi-meter

Power:2KW, AC220V 50/60Hz

Weight: about 450kgs

Dimension: 1600(L)x1100(W)x1400(H)mm

Video: segmented stator winding

Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com

BLDC Needle winding machine best sell type WIND-3-TSM from EmilyGao of coils winding supply on Vimeo.
