Automatic coil winding machine for micro air conditioner motor CNC machine

China Automatic coil winding machine for micro air conditioner motor CNC machine supplier

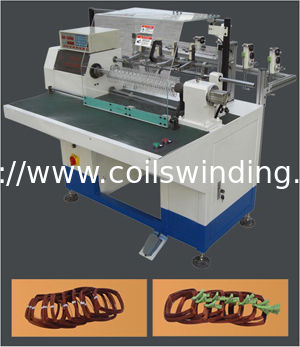

Large Image :  Automatic coil winding machine for micro air conditioner motor CNC machine

Product Details:

Place of Origin: Induction motor manufacturing equipment China Supplier
Brand Name: Wind Automation
Model Number: air conditioner production equipment

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Detailed Product Description

Multi-tap wire array automatic winding machine at same time for induction motor stator

such as compressor, pump, air conditioner motor. Winding production film

Technical Data:
Diameter of Wire: 0.1-1.0mm
Winding Diameter:25-280mm
Wire feeding head: 1-8 pc
Max rotation speed: 3200R.P.M
Input: 220V/50Hz
Air pressure: 0.5-0.8MPa
Power: 0.75KW
Machine productivity: around 1500 pcs/8 hours

Dimension: 1350mm × 1200mm × 1200mm

Weight: ≈ 600kg
