Starter Conductor Round Copper Wire Forming WIND-AWF Armature Winding Forming

Name: Starter Conductor Round Copper Wire Forming WIND-AWF Armature Winding Forming
Brand: Wind Automation
SKU: WIND-AWF Starter armatue production
Rating: 4.8 (107 reviews)

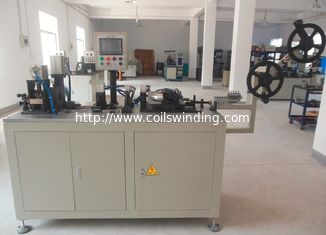

Large Image : Starter Conductor Round Copper Wire Forming WIND-AWF Armature Winding Forming Get Best Price

Product Details:

Place of Origin:	Chinese machine for producing electric motor
Brand Name:	Wind Automation
Model Number:	WIND-AWF Starter armatue production

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Payment Terms:	T/T, L/C,

Contact Now

Detailed Product Description

Starter Conductor Wire Forming:	Cutting, Enamel Stripping, Form The Wire	Wire Type:	Round Conductor

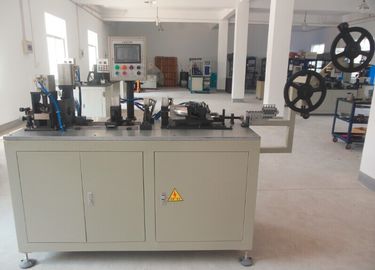

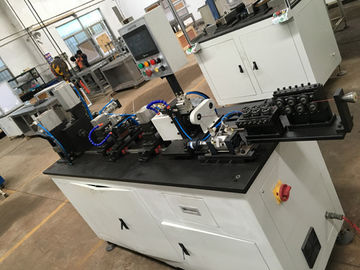

Starter armature conductor round copper wire forming WIND-AWF

Application: Equipment for starter motor, oil pump motor armature round copper wire production,

automatic straighten alignment, peel enamel,loading,cutting and forming, unloading.

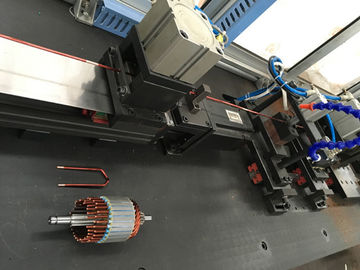

Produce coils winding for the starter armature conductor pin forming

Starter Conductor Round Copper Wire Forming WIND-AWF Armature Winding Forming 0

Starter armature conductor hairpin forming machine Parameter:

Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm

Configuration:
Mitsubishi PLC
Weinview touch screen
Korea SPG enamel remover
Airtac penumatic unit
Schneider electronic unit

Video show how machine works

https://vimeo.com/144114802

https://vimeo.com/156928740

Hairpin forming for starter armature is one of the armature manufacturing process and below information are required to check when you send inquiry

1. Formed conductor drawing	To check the size of conductor and angle of R size
2. Armature lamination drawing	To check the adpation of the formed wire which will be inserted to armature slot by machine or by hand
3. Armature sample with formed wire inserted	To check and produce tooling according the actual sample
