Automobile Starter Armature Equipment Hairpin Forming Round Wire Conductor Manufacturing For Auto Industry

Large Image : Automobile Starter Armature Equipment Hairpin Forming Round Wire Conductor Manufacturing For Auto Industry

Product Details:

Place of Origin:	Automobile starter armature manufacturing equipment supplier
Brand Name:	Wind Automation
Model Number:	starter motor armature manufacturing equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Payment Terms:	T/T, L/C,

Contact Now

Detailed Product Description

Round Wire Hairpin Forming Machine Handle Wire Size:	Starter Armature Conducotr 1.8mm To 3.4mm	Starter Round Wire Forming:	Straighten Alignment, Peel Enamel,loading,cutting And Forming, Unloading

Hairpin forming Round wire forming automobile starter armature manufacturing equipment for auto industry,form round wire or flat wire for the starter armature and automatic remove enamel,

WIND-AWF-R Automobile armature starter hairpin forming round coil winding forming machine

Advantages:

1. Cycle time Around 3s/pc,

2. Mitsubishi PLC, Weinview touch screen,Airtac cylinder and valve,Schneider Electrical components

Application:

Form wire starter motor, oil pump motor armature round copper wire production,

automatic straighten alignment, peel enamel,loading,cutting and forming, unloading.

Produce coils winding for the starter armature

Specification

Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm

Configuration:
Mitsubishi PLC
Weinview touch screen
Korea SPG enamel remover
Airtac penumatic unit
Schneider electronic unit

Video:

https://vimeo.com/144114802

https://vimeo.com/143329847

https://vimeo.com/169939571

https://youtu.be/AbF45xTtLN8

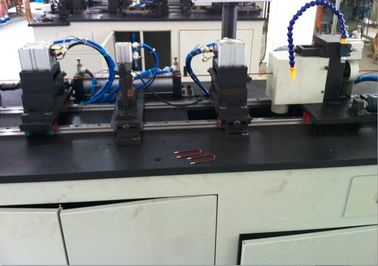

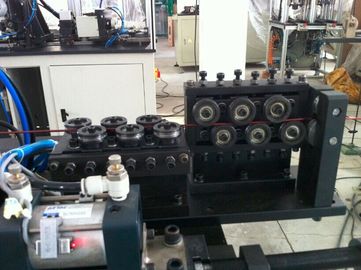

Pin forming machine Photos under production and delivery
