Aircraft Areo Flat Wire Hairpin Forming Shaping Hair Pin Bending Generator Conductor Wire
Product Details:
|
Detailed Product Description
| Flat Wire Forming: | Conductor Wire Hairpin Forming Size 3mm*8mm | Starting Motor: | Aircraft, New Energy Car Drive Motor, Truck Flat Wire |
|---|---|---|---|
| Flat Thread Wire Hairpin Size: | Max 3*8mm New Energy Drive Motor Stator From 1KW To 150KW | Application: | BSG Motor, Car Generator, Hybrid Car Coil Forming |
| High Light: | wire bending machine,starter armature copper wire forming,Shape the wire for starter armature |
||

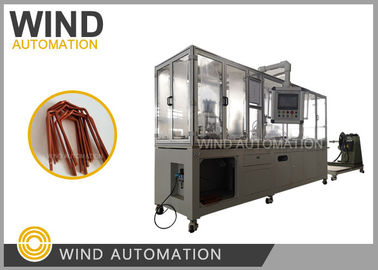

Aircraft areo flat wire hairpin forming shape the generator conductor wire forming bending machine
WIND-AWF
New energy drive motor hairpin forming is a speical equipment for flat copper wire processing for the drive motor, the equipment has design patent, the equipment can straightening enamelled copper wire and remove enamel on the plane profile side, automatic vacuum clearner,servo motor feeding,detection,cutting and forming. Hairpin forming machine can be custom made for flat wire new energy drive motor stator from 1KW to 150KW
| New energy motor Hairpin cycle time | About 4 to 5seconds per root (Wire length 300mm) |
| Feeding length | Controlled by servo motor, adjustable |
| Hairpin forming process | Flat wire straighten, plane enamelled remove, side enamel remove, automatic vacuum cleaner, seveo feeding, detection, cut and forming |
1. Mitsubishi PLC, WEINVEIW 10-inch touch screen,
2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment
3. Taiwan Nicholas precision planetary reducer.
4. Taiwan AIRTAC pneumatic parts and solenoid valves,
5. Schneider Electric components, Mingwei switch power supply.
6. Welding rack, surface spray, color: gray. Taiwan plate grinding, plating.
7. The whole part of the aluminum frame frame, three-color signal indicator.
8. The mold part of the mold steel vacuum quenching treatment.
9. To paint part of the use of hydraulic punching method, punching part of the position adjustment device adjustment screw, automatic vacuum.
10. Cut off part of the use of cylinder punching.
11. Bending U-shaped part of the use of cylinder punching.
12. 150L hydraulic system set.
13. 3KW automatic vacuum cleaner set.
14. A set of automatic discharge machine.
Hairpin forming machine
Hairpin of new energy drive motor stator
Application: Equipment for auto starting motor armature round or flat coil automatic wire loading, automatic wire feeding, automatic alignment, automatic cutting off and automatic shape making.
Features: use imported PLC and Chinese LCD interface, electric fly blade lacquer skin removing, wire feeding by pneumatic pressure, four knifes cutting off and shape making,convenientadjustment .
Technical Parameters
Power Supply Voltage: 3Φ-380V±10% 50H
Air source Pressure: 0.5~0.7Mpa
Varnish Removing Length: 0~50mm
Wire Feeding Length: 150~400mm
Wire size handled: 3*8mm
