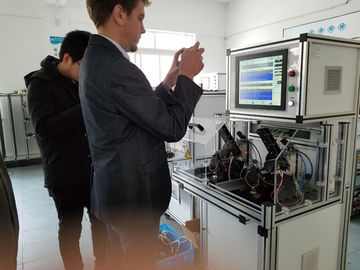

Auto positioning 23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02

China Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02 supplier
Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02 supplier Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02 supplier Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02 supplier Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02 supplier Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02 supplier

Large Image :  Auto positioning 23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02

Product Details:

Place of Origin: Chinese machine for producing starter electric motor
Brand Name: Wind Automation
Model Number: WIND-ATS-02 Starter motor duration performance testing panel

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Delivery Time: 45 working days
Contact Now
Detailed Product Description
Positioning: Automatic Positioning, No Need To Check By Operator Testing Item Content: Test Result Intuitive Display On Screen One By One
Armature Slots: 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common) Test HS Code: 9030390000

Automotive car motor Starter armature tester analyse below items



1. Bar to bar resistance (Inter-chip resistance of two commutator bars)

2. Welding resistance (To check the welding quality, the smaller the better)

3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)

4. Surge (Between the turns of the coils, comparing waveforms)

5. Isolation resistance (Resistance of the coils and stack core)

6. Hi-pot (High voltage between the coils and armature stack core)

Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02


Test Items Test Description Test result
Bar to Bar resistance 0.01mΩ~10mΩ ≤±0.5% Full scale
Welding resistance 0.01mΩ-10mΩ ±10μΩ
180℃ cross resistance 0.01mΩ-10mΩ ≤±1.5% Full scale
Surge 100-1000Vpp (Max 36sets waveform) ±5%
Isolation resistance DC 500V

0.1-500MΩ

≤±5% Full scale

Hipot AC 100-1000V

0-20mA

≤±.5% Full scale

Feature:

1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)

Four-terminal measurement to ensure accuracy

2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)

Six-terminal measurement to ensure accuracy

3. Cross resistance 0.01mΩ-10mΩ

Four-terminal measurement to ensure accuracy

4. Surge 100-1000V (100V/time)

Pulse crest:0.5u sec, Frequency 1~40MHz

Standard waveform is Write, OK waveform is Green, NG waveform is Red

5. Isolation resistance DC 500V

Testing time:1~10s (0.1s/time)

Range:1~500MΩ

Accuracy: ≤±5%

6. Hipot AC 100-1000V

Testing time:1~10s (0.1s/time)

Armature commutator bars ≤ 36 bars

Testing panel cycle time: 8~9s (according to 33bars)

13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)

Auto positioning  23 slots Automobile automotive car motor Starter armature testing machine WIND-ATS-02



Main Configuration

15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder

Pneumatic parts:Airtec



Power: AC 220V,50Hz

Air pressure:0.4~0.6MPa

Temperature:0~45℃

Dimension: 950mm*1250mm*580mm

HS Code:9030390000



https://vimeo.com/212761640

https://youtu.be/p6l3fOG2lEM



RFQ

Now we produce armatures with 29 slots, but we know some armatures with 33 slots and even 38 slots. Does the machine has capacity to test armatures with this quantity of slots? Standard machine WIND-ATS-02 can test with most 36slots only
All the slots testing data will be displayed separatedly with identification on the screen? Yes,
Is it possible to have three languages on the machine? Portuguese, English and Mandarin English and Mandarin
Please describe the tests that the machine is able to do 1. Bar to bar resistance (Inter-chip resistance of two commutator bars)
2. Welding resistance (To check the welding quality, the smaller the better)
3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)
4. Surge (Between the turns of the coils, comparing waveforms)
5. Isolation resistance (Resistance of the coils and stack core)
6. Hi-pot (High voltage between the coils and armature stack core)
How many different recipes we can setup and save on the machine? 510 sets recipes
Please describe the calibration procedure, short description Use standard resistance to calibrate
Is there any kind of restriction due to the size of the armature? Use different fixture to adapt to
What is the average time for one test of one armature? About 15s' (including initial auto positioning)
Please decribe to us the main parts brand on the machine Sampling Chip: BB(USA import)
Relay:NAIS(Jpan Panasonic)
High voltage relay:Meder (Germany import)
Pneumatic parts:Airtac
What is the warranty time and terms? 15 months from date of B/L,please refer to attached after sales details
Explain to us the welding resistance test Six wiresl balancing measurement method to ensure accuracy
Please tell us the size na weight of this machine Net weight 150KG Dimension Dimension: 950mm*1250mm*580mm
What is the Installed power of the armature tester? 1500W
Is the machine 50Hz or 60Hz? 50Hz or 60Hz, It's OK , no effect of testing
What is the voltage?
If I put an armature with short circuit, after the machine refuses it, do I have to resetup the machine? You don't have to reset up, you can test the next armature directly
Does the machine has conection to the net? With this we can save the testing data in our server, make remote access.... Yes,machine can have this function
Is it possible to add working instruction in the machine? Like a PDF file or similar Yes,
Is it possible to print the test results? Yes, you need a printer by yourself
Do we have the possibility to chose which test we want to make? Yes, you can choose which test item to make
Does the armatue anaylser has a communication port that is able to connect to a fiber laser printing machine and send serial number to be printed on the part? Yes, machine can have this function
