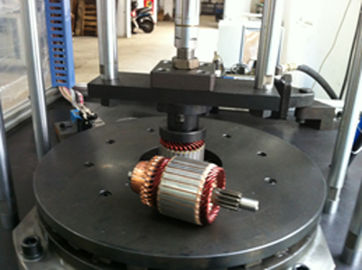

Winding expansion machine for Starter armature rotor wire to slot beside the commutator

Winding expansion machine for Starter armature rotor wire to slot beside the commutator
Winding expansion machine for Starter armature rotor wire to slot beside the commutator Winding expansion machine for Starter armature rotor wire to slot beside the commutator

Large Image :  Winding expansion machine for Starter armature rotor wire to slot beside the commutator Get Best Price

Product Details:
Place of Origin: For rotor enamel wire, wire head turning and shape making China supplier
Brand Name: Wind Automation
Model Number: Armature wire head twisting
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: polywood case well packaged, can arrive at seaport safely
Payment Terms: T/T, L/C,
Detailed Product Description

Advantages:

Efficiency 3s/pc



Parameters:

Wire to Slot:Liquid pressurized, hydraulic

Power Supply: 3Φ-380V±10%  50Hz

Motor Power: 2.2kw

Pressure:>0.5MPa

Weight: around 600KGS

Dimenstion:800*800*1500mm

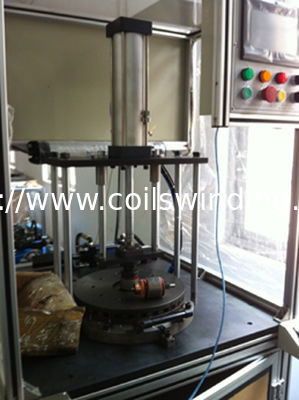

Photo:

Winding expansion machine for Starter armature rotor wire to slot beside the commutator 0



Automobile rotor Armature production process:

Pressing shaft into lamination

inserting insulation paper into lamination

Insulation paper forming

wire forming inserting into lamination

wire head twisting

winding forming

pressing commutator into shaft

pressing the wire head into commutator and cutting

commutator hotstacking

armature varnish rolling

armature runnout turning

and commutator turning

commutator undercutting

armature remove weight balancing

commutator precision turning(bur removing)

armature testing
