Shanghai Wind Automation Equipment Co.,Ltd

Sales & Support
Request A Quote - Email
Select Language
English
Italian
Russian
Portuguese
Arabic
Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
Home ProductsTesting equipment

Commutator roundness testing device WIND-RM-10 for motor with brush

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Commutator roundness testing device WIND-RM-10 for motor with brush

China Commutator roundness testing device WIND-RM-10 for motor with brush supplier
Commutator roundness testing device WIND-RM-10 for motor with brush supplier Commutator roundness testing device WIND-RM-10 for motor with brush supplier

Large Image :  Commutator roundness testing device WIND-RM-10 for motor with brush

Product Details:

Place of Origin: Motor judging China supplier
Brand Name: Wind Automation
Model Number: WIND-RM-10 Commutator roundness testing

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Polywood case
Payment Terms: 50% TT in advance, the rest at side of B/L copy
Contact Now
Detailed Product Description
Good Commutator Roundness Testing: To Get Maximum Life Out Of Your Motor Brushes And Maintain Good DC Commutation, Brushed DC Motor Armature: Commutator Roundness Related To Arcing And Sparking

Commutator roundness testing device Feature

1. The high precision LVDT sensor is used for the roundness measurement, combining the analog and

    digital filtering method into realization a high stability and rapid access to the sensor signal, to ensure

    the high precision of the sensor signal

2. Stepper motor is used as a driving source of measurement,combined with motor driven high subdivision

   and high-speed pulse, ensuring the motor to run as smooth continous and measurement points

   equidistant distribution

3. The commuatator slot data recognition algorithm is unique, to ensure that the measurement results of

    the data dones not include the gaps and the gap edge data, to guarantee the authenticity of the

   measurement results.

4. When it measured on commutator bar also complete the detection of roundness quality surface to the

   center axis at the same time, to find more accurate qualtiy armature



The purpose commutator roundness testing

If the commutator is not round, this increses the chances of incresed brush wear on the brushed DC motor armature, as well as an increase in arcing and sparking of the commutator thereby destroying the commutator surace, Good commutator roundness is very important for the armature performance

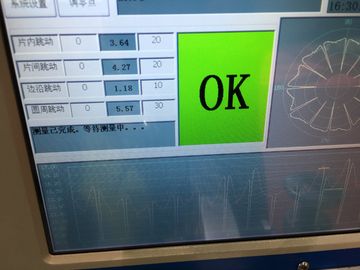

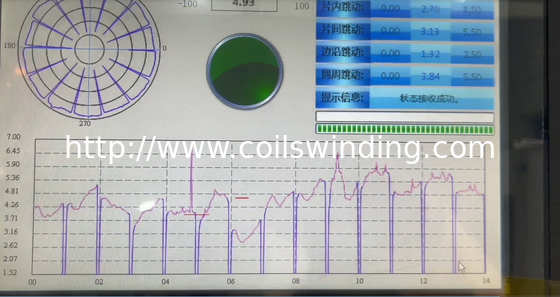

Test item Test description Test result
Inside of the Bar film  -10um ~ 10um  < 0.2um
Between slices  -10um ~ 10um  < 0.2um
Edge beat -20um ~ 20um < 0.2um
Cicyle beat -20um ~ 20um < 0.2um

Commutator roundness testing device WIND-RM-10 for motor with brush



Commutator surface turning quality is one of the importand factors that infulence the performance of armature, timely check the turning qulaity of commutator can provide an effective means of control the

lathing quality

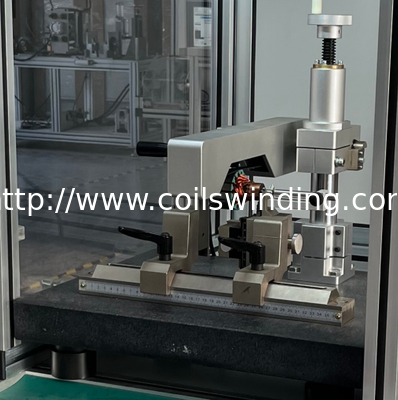

The WIND-RM-10 Rotor roundness tester can deteck the armature commutator roundness fast and accurately, it is a fast and direct way to know the state of the armature production, can control the

product quality times, control the production process and ensure the armature manufacturing quality.



You may also interest in Commutator turning machine with vacuum cleaner WIND-CT-TH4



Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.statorwindingmachine.com









Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Tel: 86-21-58992293

Send your inquiry directly to us (0 / 3000)
