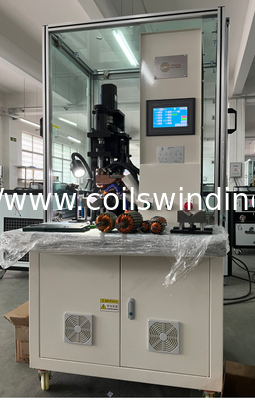

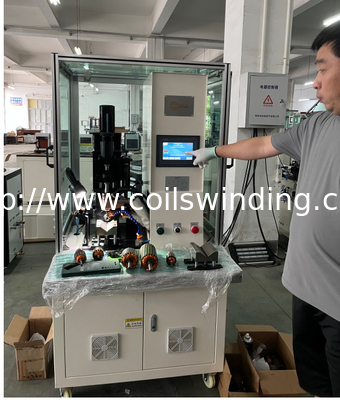

Commutator spot welding device conductor hot staking Fusing for thin big wire High frequency

China Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency supplier
Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency supplier Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency supplier Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency supplier Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency supplier

Large Image :  Commutator spot welding device conductor hot staking Fusing for thin big wire High frequency

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: HS Code:8515800090
Model Number: WIND-DC-CW003 Winch motor spot welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Two pallets one for welder, the other for water cooling device
Delivery Time: 30 working days
Contact Now
Detailed Product Description
DC Power Supply: 15KHz High Frequency Inverter Consitant DC Power Cooling System: Separate Cooling Tank Ensure Constant Temperature
Wire Range Big: Fusing Thin Wire And Big Wire Diameter Commutator Motor HS Code: 8515800090

Commutator spot welding machine conductor hot staking fusing for thin or big wire High frequency inverter

DC power supply

Motor commutator welding with especially thin or big wire, with cooling water tank (act as a conditioner )

Easy for the operator to fusing commutators.



WIND-DC-CW003 DC power supply welding machine with high frequency 15K Hz DC power supply for high and consistent quality with refrigeration constant temperature water tank

The variety armatures with wide range wire diameter covering thin wire, thick wire require fusing machine with adjustability and stability,



The high frequency inverter fusing machine WIND-DC-CW003 can make sure

stable,consistant and good quality DC power supply output,

Which achieve stable fusing result and save electricity,



For high standard usage with big output and commutator with especially thick wire, thin wire,



https://vimeo.com/208283651

https://youtu.be/uqzBaAwySFs



Fusing power supply: Wind Automation self developed high frequency 15KHz, 500~5000A

Control system: Japan Mitsubishi PLC

Indexing control: Japan Mitubishi servo positioning system

7'' Touch screen

Cooling system: Constant temperature water tank especially for fusing



Parameter:

Wire diameter: 0.01~1.2mm

Armature OD: 20~100mm

Armature stack height:10~100mm

Commutator OD:8~70mm

Airsource:5~7KG/cm2

Welding power: 10~30KW

3phase AC  380V 50~60Hz

Weight: about 350KGS

Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency



Commutator spot welding device

Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency

Conductor hot staking

Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency



Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency



Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency

Commutator spot welding device  conductor hot staking Fusing for thin big wire High frequency





For details contact emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: www.motor-machinery.com;www.coilswinding.com
