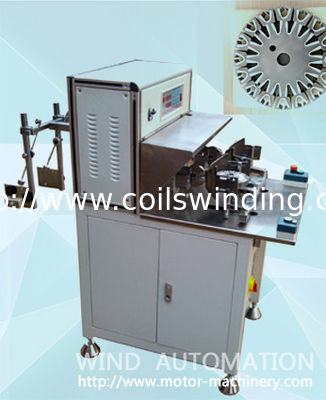

The machine has two working stations.
Controlled by micro computer, it could realize auto winding, auto allay, auto indexing;
allay and indexing is controlled by stepping motor,
winding is controlled by frequency converting motor,
turn number could be accurate up to 0.1 round.
Main technical data:
Wire diameter: 0.05-0.45mm
Stator O.D: 100mm-163mm
Stack height: 6-30mm
Slot number: less than 24 slots
RPM: 2500RPM Max
Voltage: 220v/50Hz, or customize
Power: AC 1.5kw
Suitable for winding ceiling fan stator, wind internal , external slots,
