45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire

45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire
45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire 45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire 45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire

Large Image :  45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire Get Best Price

Product Details:
Place of Origin: ebike motor winding China supplier
Brand Name: Wind Automation
Certification: BLDC E-bike winding muti coils winding
Model Number: electrical bike motor winding machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Supply Ability: Electric hub motor stator winding
Contact Now
Detailed Product Description

45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire Advantages:

Could save 6% to 15% copper wire, around  7 mintues per 2pcs



Parameter

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Configuration:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Video:

http://www.vimeo.com/123941149

The machine working for this E-bike motor manfaucuring plant with prodution 90% percent pass

https://vimeo.com/143262581

Photos:

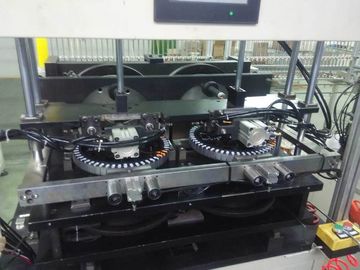

45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire 0

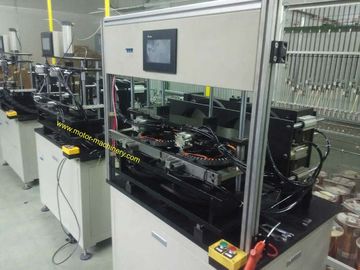

45,51,54,63 Slots Brushless Hub Motor Stator E-Bike Wheel Motor Winding Save Copper Wire 1



Contact:Emily

Email: emily@motor-machinery.comn

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
