Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
HS code: 8479811000

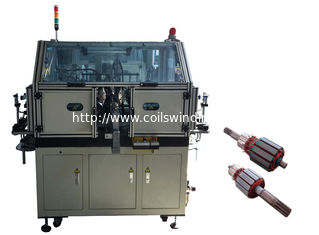

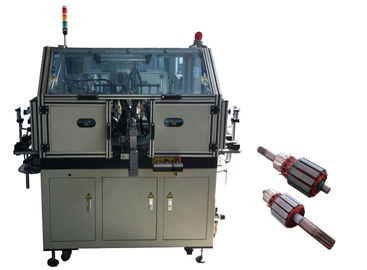

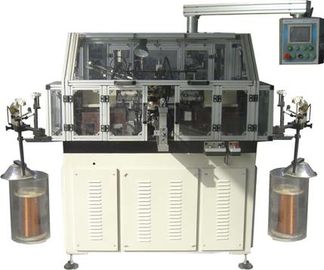

Wind the wire of armature for micro motor such as series motor,house hold appliances motor power tools,mixer,blender,car motor etc.
With Japanese brand PLC control system and servo system, this machine is the best sold in continuous 5 years!
https://vimeo.com/123798436 is the demo for the winding process, this machine is popular in many countries for the customers who produce commutator armature!
