(1) Application

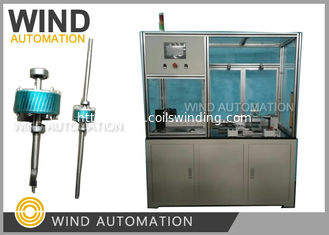

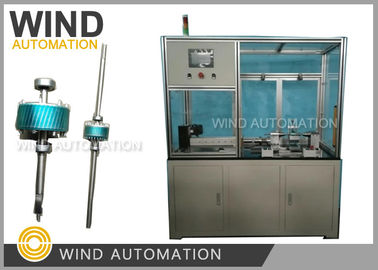

Press ball bearing to rotor armature







(2) Competitive Advantages



Servo system Pressure	Stable performance, high efficiency and precision
Delta PLC and touch screen	The data shows on touch screen   and the pressure and travel can be monitored in real time
Auto loading ball bearing detection	Left and right station shortage alarm
Two Mode	Auto/Manual
Pick out unqualified products online	Increased production efficiency and reduced inspection time







(3) Technical Data



Ball bearing type: OD 22mm(608) to OD 35mm



Shaft length: 150mm to 250mm







(4) Feature



Servo press machine is composed of bow frame, stamping slider, operating table, four guide columns,



servo electric cylinder, servo electric cylinder control system, servo electric system, pressure sensor,



line and other parts. Optional high precision displacement sensor Detection, closed-loop system control,



high pressure accuracy.





1) Precise ball bearing press



Compared with conventional pneumatic and hydraulic presses, the servo motor press machine achieve



precise pressure and full-closed-loop control for accurate pressure and displacement.





2) Energy saving



The energy-saving effect is over 80%, and it is more environmentally friendly and safe, and can meet the



requirements of a clean no dust equipment requirements workshop.





3) Real time monitoring



Pressure and displacement of the entire process curve can be displayed on the LCD screen, the whole



process control can be automatically determined at any stage of the work of the product is qualified or



not, 100% real-time removal of defective products, as a result achieve online quality management.





4) Easy touch screen setting



Press-fitting force, press-in depth, press speed, pressure holding time, etc. all can be edited and setted



on the operation panel, friendly interface, simple operation. Can store 100 sets data.





5) Data can be stored for tracking



Seven kinds of pressure mode can be selected to meet your different process requirements. Can connect



to the computer and store the pressure data in the computer, ensuring the traceability of the product



processing data and facilitating the production quality control and management.





6) No hard limits are needed



As the machine itself has precise pressure and displacement control functions, so no additional hardware



limits are required on the tooling, machining is not When the same specification product is used, it only



needs to call different press-fitting procedures, so a multi-purpose and flexible assembly line can be easily



realized.





Custom made multi-function precision servo press machine is improved on the original servo press



machine, intelligent press function is added, displacement detection and pressure detection are more



accurate than the original servo press, and the man-machine interface adopts 10-inch large-size



configuration screen to cooperate with me. Shanghai Wind Automation newly developed servo press-



fitting software system can effectively improve press-fitting efficiency, power saving, and intelligence of a



new type of equipment. The equipment has the following functions:





Product features:



1. Stroke six-speed precision press-fit



2. Online press-fit quality determination



3. Press-fit curve display



4. Seven press-fit modes for selection



5. 100 sets of press-fit programs can be set



6. Packing data transmission and storage





Six stroke speed:



Fast forward, detect, work advance, work advance 2, work advance 3, hold pressure





Seven press modes can be selected during program setting:



Constant press speed, set precise position stop



Constant press speed, set precise pressure stop



Constant press speed, set precise stop



Constant press speed, I/O trigger stop



Pressure/displacement, two-stage model



Pressure/Pressure, Two-Stage Mode



Pressure/position, two-stage mode







(5) Ask and Answer





1. Can you please send us the price and delivery time?



--- Please send your rotor assembly drawing and ball bearing type





2. What type of tooling is necessary and what’s the cost?



--- For different rotor and ball bearing, the rotor holder and ball bearing loading device is different





3. What is the minimum and maximum size of ball bearings that can press into the shaft?



--- Min. and Max.Size is OD 22mm(Ball bearing 608), 35mm (6202)





4. Is it possible press two different ball bearing size, one in each side of shaft?



--- Yes





5. What’s the maximum shaft length and maximum distance between ball bearings that can



press?



--- It depends on your products, please provide drawings for checking





6. Is it possible control de pressure?



--- Yes, can control pressure and show on touch screen
