Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion

China Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion supplier
Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion supplier Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion supplier

Large Image :  Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: WIND-AGWI Fully automatic Coil winding and insertion machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc wave winding 1pc coil inserting combained
Packaging Details: Starter coils winding and insertion machine wind and insert wave shape coil winding for auto generat
Contact Now
Detailed Product Description

Automatic car automobile Generator alternator stator wave winding and wedge insertion WIND-AGWI  is

suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting

into winding transfer former automatically.



WIND-AGWI Fully automatic Double station automatic winding and insertion for alternator generator stator
Features:
Servo motor control wire arraying and winding, pneumatically shaped to plum blossom,
double work stations automatic position changing,
servo automatic wire embedding, automatically put into slot cover,
one work station for wave shape winding and push into wire embedding mould,
another station for wire embedding and put into slot cover,
put paper inserted stator on the station manually, repeating operation,
PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method,
high automation and efficiency.

Parameters:
Power Supply Voltage: 3Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion-380V/220VAutomatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion10%  50Hz
Air source Pressure: 0.5~0.7Mpa​
Machine Power: about 8 kW
Wire Winding Speed: 10-120r/min
Stator Slot Number 36/48
Wire Diameter: Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion0.8-Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion1.6mm
Merging Winding Wire Number: 1-2

Two station Coil winding and insertion machine in one machine

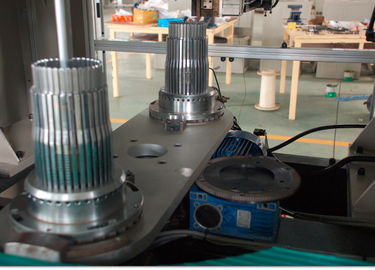

Photo:

Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion

Video:

 alternator generator wave winding and insertion combination machine





Contact:EmilyGao

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: www.motor-machinery.com;www.coilswinding.com

全自动发电机定子绕线嵌入 Double station automatic winding and insertion for alternator generator stator WIND-AGWI from EmilyGao of coils winding supply on Vimeo.
