Starter Armature Commutator Spot Welding With AC Power Supply Hot Stacking Welder Brazing

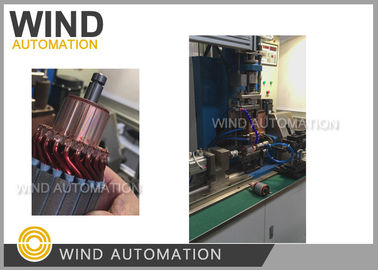

WIND-125-DNZ commutator spot welding machine weld the armature commutator with round wire

or flat wire(rectangular wire)

Advantages

1. Tungsten rod still in the middle of the commutator spot

2.  Color difference detection device avoid mica

3. Stable DC current,voltage and short welding time ensure the wonderful welding quality

Technical Parameters

Power Supply :380V±10%  50Hz

Air source Pressure: 0.5~0.7Mpa

Max wire size: 4mm round wire or 3*6mm rectangular wire

Cooling Method:  Industrial water cooling device

Machine demo video:

https://vimeo.com/169347648

For a 23 slot armature, welding time is 35s'
