Electric Insulation Slot Cell Paper Form And Cut For Two Pole Excited DC Motor Stator
Product Details:
|
Detailed Product Description

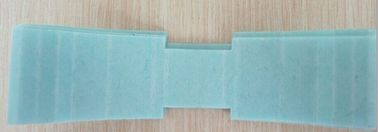

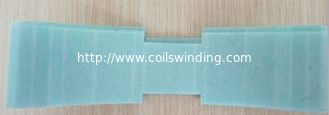

Electric Insulation Slot Cell Paper Form And Cut For Two Pole Excited DC Motor Stator

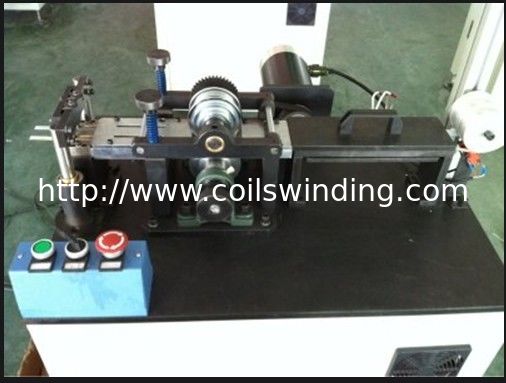

Form and cut the insulation paper (video) for universal motor stator,
cell insulation such as mixer,grinder,power tools,
Main technical data:
Armature O.D: Ф20-55mm
Length of lamination: Max 60mm
Parameter:
Shaft length: 32~250mm
Shaft O.D: Ф6~Ф20mm
Slot number: 8-24 slots
Commutator O.D: Ф16~Ф50mm
Speed regulation range: 0~60Hz
Length of insulation paper: 15-60mm adjustable
Thickness of insulation paper: 0.1 mm ~ 0.5 mm
Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.
Insulation paper shape: V or edge-folding V
Efficiency: 0.5sec - 0.8sec/per slot, loading
Working video:
https://www.youtube.com/watch?v=5PL1h7nWriU
Contact:Emily
Email:emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: www.motor-machinery.com;www.coilswinding.com
Stator slot paper forming and cutting WIND-SCF from EmilyGao of coils winding supply on Vimeo.
