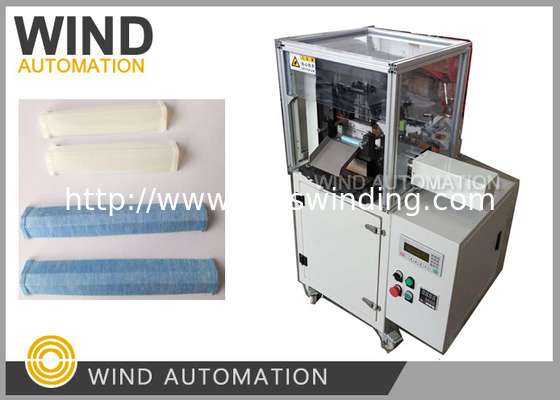

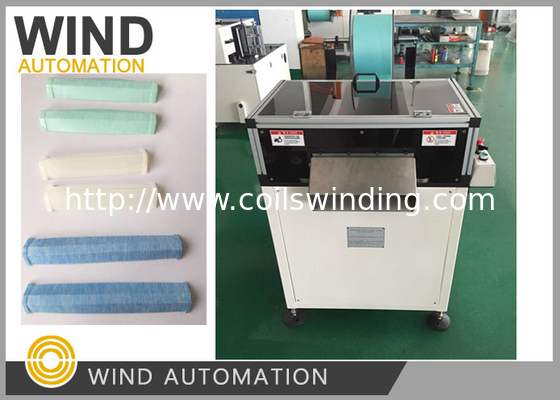

MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators

MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators
MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators

Large Image :  MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: WIND-150-IF insulation paper Form and cut for induction motor
Payment & Shipping Terms:
Minimum Order Quantity: 1pc Form and cut the insulation paper for induction motor cell insulation such as water pump,ceilin
Detailed Product Description
Slot Liner: Forming Creasing The Mylar Mylar Material: DMD Mylar

MYLAR Film Forming Cresing Insulation paper forming and cutting machine WIND-150-IF

MYLAR Film DMD Paper Forming Cresing For Insulation Insertion Of Single Three Phase AC Motor Stators 0

Parameter:

Feeding length:  10mm-100mm
Insulation thickness:   <0.35mm
Fold edge width:      2.5~4mm

Cutting width: < 150mm

Fold edge, paper feeding length and width is adjustable

Input:    220V/50Hz
Dimension: 500mm × 900mm × 1200mm
Weight: ≈ 150kg

Video:

https://vimeo.com/125517280

Equipment Produce electric insulation paper WIND-150-IF Shanghai Wind Automation Equipment Co.,Ltd from EmilyGao of coils winding supply on Vimeo.
